Order
code
|
FRL
6-10-30-S
|
|
Ports
|
G1"
|
|
Temperature
range
|
max
+50°C
|
|
Weight
|
5.7
kg
|
Inlet
pressure range
(p1)
|
0 ...
10 bar
0 ... 1 MPa
|
Outlet
pressure range
(p2)
|
0.5
... 10 bar
0.05 ... 1 MPa
|
Minimum
pressure difference
(p1 - p2)
|
0.2
bar
0.02 MPa
|
Hysteresis
(p1 = 10 bar / p2 = 0 bar)
|
0.6
|
Hysteresis
(p1 = 10 bar / p2 = 8 bar)
|
0.3
|

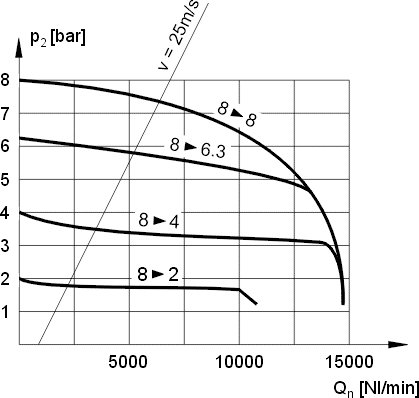

Recommended
flow rate
(p = 6 bar at 25 m/s)
|
5000
Nl/min
|
|
Filter
element
|
30
µm
|
