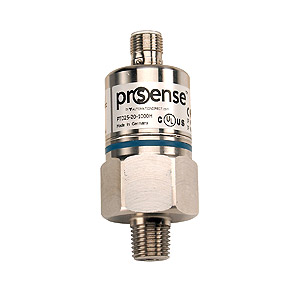

Pressure and Vacuum Transmitters

• These pressure transmitters offer quick installation and easy setup.


• Pressure transmitter output options include 4 to 20 mA or 0 to 10 Volts.


• Vacuum pressure transmitters offer 20 to 4 mA or 10 to 0 Volts.

Features

• Ceramic sensing element provides high burst/overpressure protection
• Output options: 4-20 mA or 0-10 V
• Analog output via 4-pin M12 DC connector
• Flexible film circuit results in excellent shock and vibration resistance
• Robust stainless steel housing
• Agency Approvals: cULus, CE

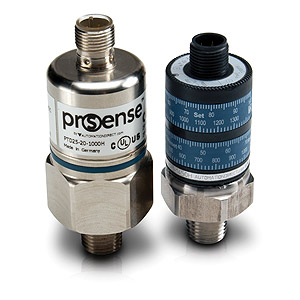

Pressure Switches, Pressure and Vacuum Transmitters

• ProSense pressure sensors and vacuum sensors are a solid-state solution to mechanical pressure switches.


• These sensors are smaller and easier to install than traditional mechanical pressure switches.


• Flexible film circuitry enables the system components to be mounted on flexible film rather than a rigid circuit board. The film is then rolled and placed inside a compact, stainless steel housing.


• ProSense offers pressure sensing solutions using capacitive sensing technology and strain gauge technology. The capacitive sensing technology sensors incorporate the same ceramic pressure measuring cell sensing technology found in high accuracy pressure transmitters.


• Vacuum sensors provide an accurate readout of increases and decreases in vacuum systems. With no moving parts such as pistons or springs that can stick or break, ProSense pressure and vacuum sensors are a solid-state solution to mechanical switches.
