You are looking at:  Programmable Controllers > Do-more Series PLCs (Micro Modular) > Do-more H2 Series PLCs > Programming Software

  • Product Info
  • Overview
  • Technical Info
  • Manuals
    -  $ X

Cart Qty:


For stock status, special notes and other information please see this product's detailed information page.
/images/categories/p4_t_domore_software.jpg
CPUs
Bases
DC I/O
AC I/O
AC/DC I/O (Relay Outputs)
Analog I/O
Ethernet Remote I/O
Communications & Networking
Specialty Modules
Programming Software
ZipLink Wiring Solutions
Spare Parts
Starter Kits
Documentation

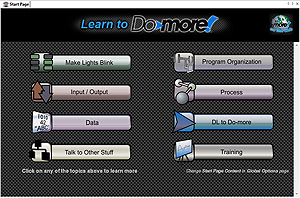

Do-more PLC Programming Software: Do-more Designer Do-more PLC Programming Software: Do-more Designer

New! ... Full-featured programming software for Do-more PLCs
Do-more Designer™ is the full-featured PLC programming software for the Do-more™ series programmable logic controllers (PLCs).

Flexible program management supports a mix of stage and ladder logic for a best-of-both-worlds approach that simplifies programming and makes trouble-shooting easier. Do-more Designer Software is offered as a free download from the Automationdirect.com Web site. A CD-ROM version is also available for purchase.

Do-more Designer Software Features
  • Supports the Do-more PLC instruction set

  • Project Browser (Window to organize the user project)

  • Data View (Interface to monitor PLC data in a list)

  • Trend View (Interface to monitor PLC data with trend graphs)

  • PID View (Interface to monitor and tune the individual PID control loop)

  • PID Overview (Interface to monitor multiple PID control loops)

  • Debug View (Interface to debug the ladder programs)

Supporting Tools for Do-more Designer Software
When Do-more Designer is installed on your PC, the following tools are also installed:
  • Do-more PLC Simulator (Offline simulator of ladder program execution and PID control)
  • Do-more PLC Logger (Software tool to log PLC data)
  • ERM Workbench (Configuration tool for the ERM modules)
  • NetEdit 3 (Configuration tool for the ECOM/EBC Ethernet modules)

PC Requirements
The Do-more Designer Windows-based programming software works with Windows® XP (Home or Professional, 32-bit), Vista (Home, Basic, Premium, 32 or 64-bit) or Windows 7 (Home, Professional, Ultimate, 32 or 64-bit). Please check the following requirements when choosing your PC configuration:
  • Minimum PC to PLC Connectivity, at least one of the following:
    - USB Port: connects to the CPU with USB-A connector (USB-A to USB-B cable)
    - RS-232 Serial Port: connects to the CPU with RJ-12 connector (RJ-12 to DB9 or RJ-12 to USB-B serial converter cable)
    - Ethernet Port: connects to the CPU (H2-DM1E) with RJ-45 10Base-T or 100Base-T (Cat5 Patch Cable)
  • Hard Disk: 100MB free disk space
  • Video Display: 1024x768, 256 colors resolution (1280x720, true color recommended)
  • Windows XP, 32-bit:
    - 800MHz, single core CPU (2GHz, multi-core or hyperthreaded recommended)
    - 512MB RAM (2GB recommended)
  • Vista or Windows 7, 32 or 64-bit:
    - 1GHz, single core CPU (2GHz, multi-core recommended)
    - 1GB RAM (3GB recommended)

PLC Programming and Communication Cables
The H2 Series Do-more CPU module H2-DM1 has two communication ports (USB and RS-232 serial). The H2-DM1E has three communication ports (USB, RS-232 serial and Ethernet). You can use any of those ports for programming and monitoring. Required cables for these ports can be purchased from AutomationDirect.
  • USB cables (USB 2.0, Type A-B connectors) available
  • RS232 serial cable available
  • Ethernet Cables (Cat5e) available
    Do-more Designer Programming Software
    Free Do-more Designer Software Download

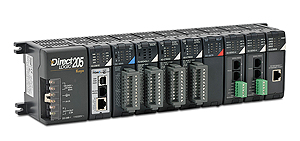

    Do-more 9-slot PLC
    Do-more PLC - H2 Series



    Visit the in-depth Do-more PLC product Web site:
    www.do-moreplcs.com



          Do-more PLC How-To product videosDo-more PLC QuickStart Video

    Do-more PLC Programming Software Instruction Set
    The Do-more Designer Software instruction set was recently developed for the Do-more PLC Series.
    • Optimized for flexibility and ease-of-use
    • Pop-up "Instruction Palette" allows quick selection and insertion of instructions into the Do-more program
    • The powerful spreadsheet style MATH instruction allows mixing of data types and accepts formulas and variables.
    • Dedicated High Speed I/O & Motion Control instructions greatly simplify and improve functionality
    • Communications are easy to set up, define and troubleshoot
    • Powerful monitoring and trouble-shooting tools allow precise tuning of PID loops; monitoring of program elements and status bits
    • Do-more Designer program management tools support a mix of stage and ladder for a best-of-both-worlds approach that simplifies code and makes troubleshooting easier.
    • Project Management - all project files are stored on-board the CPU, no more searching for the most recent copy of the program
    • Do-More Designer offers versatile password protection for multiple users and assigning combinations of privileges from available options

    Do-more Designer PLC Programming Software & Cables

    PART NO. DESCRIPTION PRICE INFO
    DM-PGMSW Do-More Designer Windows PC programming and documentation software for the Do-more PLC series. Also available for Free Download online. Order programming cable separately. $10.00 DM-PGMSW Do-more Programming Software Overview
    H2-DM-M H2 series Do-more PLC user manual. Covers CPUs, bases, discrete I/O, analog I/O and intelligent modules.
    Free Download online or order hard copy separately.
    $29.00 Download User Manual
    USB-CBL-AB3 3 ft. (0.9 meter) standard USB 2.0 cable with A plug to B plug $5.00 USB-CBL-AB3 Overview
    USB-CBL-AB6 6 ft. (1.8 meter) standard USB 2.0 cable with A plug to B plug $8.00 USB-CBL-AB6 Overview
    USB-CBL-AB10 10 ft. (3 meter) standard USB 2.0 cable with A plug to B plug $12.00 USB-CBL-AB10 Overview
    USB-CBL-AB15 15 ft. (4.6 meter) standard USB 2.0 cable with A plug to B plug $15.00 USB-CBL-AB15 Overview
    D2-DSCBL 12 ft. (3.66m) RS-232 shielded PC programming cable. 9-pin D-shell female connector to RJ12 6P6C connector. $14.00 D2-DSCBL  Overview

    Do-more H2 Series PLC Overview
