| Directional Solenoid valves-AZ Pnuematica |
 |
| |
3/2-way Single
solenoid valves for pneumatic control applications
|
|
 G
1/4 Ports |
| 322ME-1 |
3/2 1/4" solenoid valve- spring return with 12VDC coil and plug-in connector |
| 322ME-2 |
3/2 1/4" solenoid valve- spring return with 24VDC coil and plug-in connector |
| 322ME-3 |
3/2 1/4" solenoid valve- spring return with 24VAC coil and plug-in connector |
| 322ME-4 |
3/2 1/4" solenoid valve- spring return with 110VAC coil and plug-in connector |
| 322ME-5 |
3/2 1/4" solenoid valve- spring return with 240VAC coil and plug-in connector |
|
| |
5/2-way Single
solenoid valves for pneumatic control applications
|
 |
| 5-Port, 2-Position (AZ Series) |
|
G
1/4 Ports |

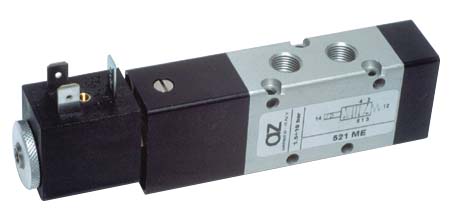

| 522ME-1 |
5/2 1/4" solenoid valve- spring return with 12VDC coil and plug-in connector |
| 522ME-2 |
5/2 1/4" solenoid valve- spring return with 24VDC coil and plug-in connector |
| 522ME-3 |
5/2 1/4" solenoid valve- spring return with 24VAC coil and plug-in connector |
| 522ME-4 |
5/2 1/4" solenoid valve- spring return with 110VAC coil and plug-in connector |
| 522ME-5 |
5/2 1/4" solenoid valve- spring return with 240VAC coil and plug-in connector |
|
G
1/2 Ports |
| CS-541-15-12VDC |
5/2 1/2" Single Solenoid Valves with 12VDC coil and plug-in connector |
| CS-541-15-24VDC |
5/2 1/2" Single Solenoid Valves with 24VDC coil and plug-in connector |
| CS-541-15-24VAC |
5/2 1/2" Single Solenoid Valves with 24VAC coil and plug-in connector |
| CS-541-15-110VAC |
5/2 1/2" Single Solenoid Valves with 110VAC coil and plug-in connector |
| CS-541-15-240VAC |
5/2 1/2" Single Solenoid Valves with 240VAC coil and plug-in connector |
|
| |
5/2-way Double
solenoid valves for pneumatic control applications
|
 |
| 5-Port, 2-Position (AZ Series) |
 G
1/4 Ports
|
| 522EE-1 |
5/2 1/4" double solenoid valve with 12VDC coils and plug-in connectors |
| 522EE-2 |
5/2 1/4" double solenoid valve with 24VDC coils and plug-in connectors |
| 522EE-3 |
5/2 1/4" double solenoid valve with 24VAC coils and plug-in connectors |
| 522EE-4 |
5/2 1/4" double solenoid valve with 110VAC coils and plug-in connectors |
| 522EE-5 |
5/2 1/4" double solenoid valve with 240VAC coils and plug-in connectors |
|
 G
1/2 Ports
|
| CS-542-15-12VDC |
5/2 1/2" Double Solenoid Valves with 12VDC coils and plug-in connectors |
| CS-542-15-24VDC |
5/2 1/2" Double Solenoid Valves with 24VDC coils and plug-in connectors |
| CS-542-15-24VAC |
5/2 1/2" Double Solenoid Valves with 24VAC coils and plug-in connectors |
| CS-542-15-110VAC |
5/2 1/2" Double Solenoid Valves with 110VAC coils and plug-in connectors |
| CS-542-15-240VAC |
5/2 1/2" Double Solenoid Valves with 240VAC coils and plug-in connectors |
|
| Pneumatic Solenoid Valve Accessories |
| Pneumatic valve manifolds, blanking plates, mounting brackets, stacking screw kit, plug tops and coils. |
|
| |
01.032.4 |
Multile Sub-base kit for 1/4" spool valve |
| |
01.033.4 |
1/4" left hand header kit |
| |
01.045.4 |
1/4" right hand header kit |
| |
01.007.3 |
1/4" blanking plate kit |
| |
|
|
| |
|
|
|
Spare Coils and Plug Tops
|
Solenoid
valve prices are complete with coils and plug tops std Other
voltages are available exstock
| N691 |
00.167.0 |
12VDC coil |
| N692 |
00.028.0 |
24VDC coil |
| N693 |
00.029.0 |
24VAC coil |
| N694 |
00.030.0 |
110VAC coil |
| N695 |
00.031.0 |
220VAC coil |
| N690 |
00.197.0 |
Black standard connector |
|
|
