Air
treatment units ------ LAC filter, regulator & lubricators
 |
 |

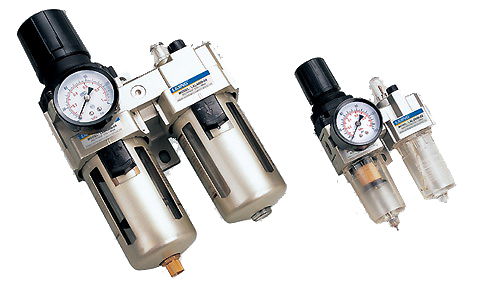

| LAC FR.L. units pneumatic air filters, air regulators, air lubricators, s are available in a wide variety of port sizes to meet a broad range of pneumatic air supply filtration, air regulation and compressed air lubrication applications. It includes 2 parts: filter/regulator
and lubricator, but still have 3 function: filtration, decompression
and lubricating. .
All size have overflow function. |
| All Pricing includes mounting bracket and Regulators come with a Gauge |
| LAC |
4010 - |
04 |
D |
| | |
| |
| |
| |
Air Combination |
Specification
2010
3010
4010
5010 |
Joint Pipe Bore
01:G1/8
02:G1/4
03:G3/8
04:G1/2
06:G3/4
10:G1 |
Drain Type
Blank:Differential Drain
D:Automatic
Drain |
|
 |
| Model |
LAC 2010-01 |
LAC 2010-02 |
LAC 3010-02 |
LAC 3010-03 |
LAC 4010-03 |
LAC 4010-04 |
LAC 4010-06 |
LAC 5010-06 |
LAC 5010-10 |
| Rated Flow |
500 |
500 |
1700 |
1700 |
3000 |
3000 |
3000 |
4000 |
4500 |
| Joint Pipe Bore |
G1/8 |
G1/4 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
| Filtering Eleiment
Roughness |
25u |
| Highest Working
Pressure |
1.0MPa |
| Ensured Pressure
Resistance |
1.5MPa |
Operating
Temperature Range |
5-60℃ |
| Range of Adjustable
Pressure |
0.05-0.85MPa |
| Recommended Oil
Use |
ISO VG
32 |
| Container Material |
Polycarbonate |
| Protective Cover |
Not
Available |
Available |
| Drain Function |
Differential Drain |
Differential Drainã€Automatic Drain |
| Valve Type |
With
Overflow |
| Assembly |
Filter |
LAW 2000-01 |
LAW 2000-02 |
LAW 3000-02 |
LAW 3000-03 |
LAW 4000-03 |
LAW 4000-04 |
LAW 4000-06 |
LAW 5000-06 |
LAW 5000-10 |
| Lubricator |
LAL 2000-01 |
LAL 2000-02 |
LAL 3000-02 |
LAL 3000-03 |
LAL 4000-03 |
LAL 4000-04 |
LAL 4000-06 |
LAL 5000-06 |
LAL
5000-10 |

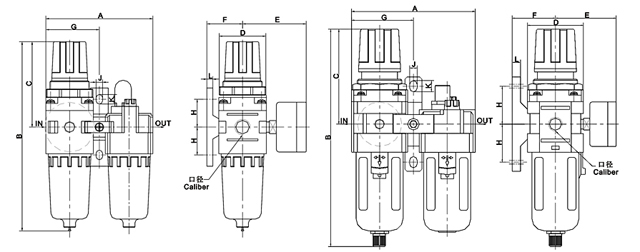

| TYPE:LAC2010 |
TYPE:LAC3010-5010 |
| Model |
Bore |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
| LAC2010 |
1/4 |
90 |
164.5 |
78 |
40 |
56.8 |
30 |
45 |
24 |
5.5 |
8.5 |
5 |
| LAC3010 |
1/4-3/8 |
117 |
211 |
92.5 |
53 |
60.8 |
41 |
58.5 |
35 |
7 |
11 |
7 |
| LAC4010 |
3/8-1/2 |
154 |
262.5 |
112 |
70 |
70.5 |
50 |
77 |
40 |
9 |
13 |
7 |
| LAC4010-06 |
3/4 |
164 |
267 |
114 |
70 |
70.5 |
50 |
82 |
40 |
9 |
13 |
7 |
| LAC5010 |
3/4-1 |
195 |
338 |
116 |
90 |
75.5 |
69.8 |
97.5 |
50 |
11.5 |
15 |
10.5 |
|
|
