There are many practical and cost-effective ways for designers to incorporate automation redundancy for systems of any size.



Automation redundancy has largely been reserved for larger process automation systems due to cost and complexity. However, there are now more products and design strategies suitable for applying redundancy to smaller-scale systems.



Costly Conditions

Where possible, automation designers prefer to avoid single points of failure, which can lead to poor outcomes ranging from minor inconveniences to something much more serious.

A single point of failure is any electrical, mechanical, software or other element in a system which will cause the rest of the system to stop working as intended if it fails.

Redundancy is a way to overcome single points of failure, and it can be applied to:

• Power supplies

• Field instrumentation and sensors

• PLCs and hardwired control

• HMIs, SCADA, and other visualization systems

• OPC communications with Kepware's Media Level Redundancy plug-in



Among these items, PLCs are generally considered the most resistant to failure, but in all cases the risk of failure must be weighed against the cost to add redundancy to arrive at the most beneficial approach.



Redundancy Basic

The article considers a common example, which is a wastewater lift station using a VFD-driven pump and level instruments. Redundancy can be applied in several ways for such a system.



Power Supply

When only one utility power feed is available (which is usually the case), designers need to consider applying an uninterruptible power supply (UPS) or a battery control module to preserve control power. They can also incorporate dual power supplies combined with a diode module to preserve power if one supply fails. Electronic circuit breakers (ECBs) provide fast-acting circuit protection, and they can be monitored by a PLC and HMI/SCADA system.



Sensors and Instrumentation

For critical measurements, especially under harsh conditions, designers should always consider implementing a second, or even a third, sensor, and use different technologies where possible. For level measurement, the wet well example could use a non-contact ultrasonic sensor as primary, a submersible hydrostatic sensor as secondary, and then float switches as a third level monitoring technology. The PLC and HMI/SCADA should incorporate mismatch monitoring and alarming.



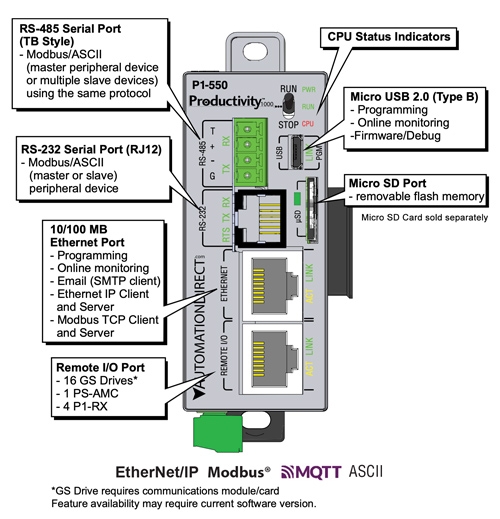

PLCs and Hardwired Control

While redundant PLCs are available, for smaller systems like the wet well it may be more appropriate to add some basic hardwired controls, such as a high-low level controller, in parallel with a PLC. If the PLC or VFD fails, this type of controller can use bypass contactors to run the pump in a simple on/off manner.



HMI/SCADA

For visualization integrity, designers can consider implementing Ethernet redundant rings and multiple operator stations. It can also make sense to incorporate traditional pushbuttons, switches, lights, and similar devices to provide some bare-bones functionality in the event of an HMI/SCADA failure.

Figure 2: This HMI display depicts a wastewater lift station, using two different level measurement technologies (with a “level disagree” alarm) in the wet well and four redundant pumps, all powered by a monitored UPS.





OPC SOFTWARE - KEPWARE MEDIA LEVEL REDUNDANCY PLUG-IN

In addition to SCADA redundancy, software tools like Kepware's Media Level Redundancy plug-in offer a simple way to protect OPC data communications. Media Level Redundancy (MLR) automatically monitors OPC servers and provides clients with data from a secodary server if the primary fails, without manual intervention. This ensures that even if visualisation systems or client applications experience distruptions, critical process data keeps flowing. For smaller operations, it provides a practical, affordable way to add software layer resiliency alongside hardware and SCADA redundancy.



Realistic Redundancy

Applying redundancy to an industrial automation design requires a carefully balanced decision making with regard to price, performance, physical space and other factors. Fortunately, there are many products and design approaches to improve the resiliency of power, measurement, control and visualization systems.



All figures courtesy of AutomationDirect. Article courtesy of Rin Irvin, product engineer at AutomationDirect.com



---







For more information about redundancy measures or products, get in touch with our experienced technicians.
