Click PLC

The CLICK family of controllers offer low-cost, easy-to-use micro PLCs, available in stackable brick or micromodular styles, providing simple control. CLICK PLUS PLCs build upon the original CLICK series with advanced options such as data logging, Wi-Fi connectability, MQTT communication, motion control and increased security measures. Free programming software supports all CLICK PLCs.

SHOP
PRODUCT INFO

Product Code	Product Name	Price ($AUD)
Product Code : C0-04AD-2	CLICK Analog Input Module - CLICK analog input module, 4-channel, voltage, 13-bit, input voltage signal range(s) of 0-10 VDC, external 24 VDC required.	$232.00
Product Code : C0-04THM	CLICK Temperature THM Input Module - CLICK temperature input module, thermocouple, 4-channel, 16-bit resolution, input thermocouple type(s): J, E, K, R, S, T, B, N, C. Removable terminal block included.	$334.00
Product Code : C0-4AD2DA-2	CLICK Analog Combo Module - CLICK analog combo module, Input: 4-channel, voltage, 0-10 VDC, Output: 2-channel, voltage, 0-10 VDC.	$335.00
Product Code : C0-04RTD	CLICK Temperature RTD Input Module - CLICK temperature input module, RTD, 4-channel, 16-bit resolution, input RTD type(s): Pt100, Pt1000, JPt100, Cu10, Cu25 and Ni120. Removable terminal block included.	$335.00
Product Code : C0-04DA-2	CLICK Analog Output Module - CLICK analog output module, 4-channel, voltage, 12-bit, output voltage signal range(s) of 0-10 VDC, external 24 VDC required.	$316.00
Product Code : C0-04DA-1	CLICK Analog Output Module - CLICK analog output module, 4-channel, current, 12-bit, output current signal range(s) of 4-20 mA, external 24 VDC required.	$316.00
Product Code : C0-4AD2DA-1	CLICK Analog Combo Module - CLICK analog combo module, Input: 4-channel, current, 0-20 mA, Output: 2-channel, current, 4-20 mA.	$335.00
Product Code : MSD-SLC16G	CLICK Memory Card 16MG - CLICK industrial memory card, 16MG micro SD. For use will all products with microSD card slot.	$201.00
Product Code : D2-DSCBL	205 Programming Cable - 12 ft. (3.66m) RS-232 shielded PC programming cable for DirectLOGIC DL05, DL06, DL105, DL205, D3-350 and D4-450 CPUs, Do-more H2 series CPUs, and CLICK CPUs. 9-pin D-shel_{… (read more)}	$60.00
Product Code : C2-01CPU	CLICK PLUS PLC - CLICK PLUS PLC, 24 VDC required, Ethernet, serial and microB-USB ports, no on-board I/O.	$203.00
Product Code : C2-01CPU-2	CLICK PLUS PLC - CLICK PLUS PLC, 24 VDC required, (2) option slots, Ethernet, serial and microB-USB ports, no on-board I/O.	$283.00
Product Code : C2-02CPU	CLICK PLUS PLC - CLICK PLUS PLC, 24 VDC required, WiFi LAN/Bluetooth and micro-B USB ports, no on-board I/O.	$311.00
Product Code : C2-02CPU-2	CLICK PLUS PLC - CLICK PLUS PLC, 24 VDC required, (2) option slots, WiFi LAN/Bluetooth and microB-USB ports, no on-board I/O.	$397.00
Product Code : C2-03CPU	CLICK PLUS PLC - CLICK PLUS PLC, 24 VDC required, WiFi LAN/Bluetooth, Ethernet, serial and micro-B USB ports, microSD card slot, no on-board I/O.	$419.00
Product Code : C2-03CPU-2	CLICK PLUS PLC - CLICK PLUS PLC, 24 VDC required, (2) option slots, WiFi LAN/Bluetooth, Ethernet, serial and microB-USB ports, microSD card slot, no on-board I/O.	$521.00
Product Code : C2-14D1	CLICK PLUS discrete combo module - CLICK PLUS discrete combo module, Input: 8-point, 24 VDC, sinking/sourcing, Output: 6-point, 5-27 VDC, sinking, 0.1A/point. Removable terminal block included.	$118.00
Product Code : C2-14D2	CLICK PLUS discrete combo module - CLICK PLUS discrete combo module, Input: 8-point, 24 VDC, sinking/sourcing, Output: 6-point, 24 VDC, sourcing, 0.1A/point. Removable terminal block included.	$118.00
Product Code : C2-14DR	CLICK PLUS discrete combo module - CLICK PLUS discrete combo module, Input: 8-point, 24 VDC, sinking/sourcing, Output: 6-point, 6-240 VAC/6-27 VDC, relay, (6) Form A (SPST) relays, 1A/point. Removable term_{… (read more)}	$143.00
Product Code : C2-14AR	CLICK PLUS discrete combo module - CLICK PLUS discrete combo module, Input: 8-point, 100-120 VAC, Output: 6-point, 6-240 VAC/6-27 VDC, relay, (6) Form A (SPST) relays, 1A/point. Removable terminal block in_{… (read more)}	$143.00
Product Code : C2-08D1-4VC	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, D_{… (read more)}	$182.00
Product Code : C2-08D2-4VC	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, D_{… (read more)}	$182.00
Product Code : C2-08DR-4VC	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, D_{… (read more)}	$208.00
Product Code : C2-08AR-4VC	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, Discrete Output: 4-_{… (read more)}	$209.00
Product Code : C2-08D1-6C	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, sinking/sourcing, Discrete Output: _{… (read more)}	$182.00
Product Code : C2-08D2-6C	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, sinking/sourcing, Discrete Output: _{… (read more)}	$182.00
Product Code : C2-08DR-6C	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, sinking/sourcing, Discrete Output: _{… (read more)}	$208.00
Product Code : C2-08AR-6C	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, Discrete Output: 4-point, relay, (4_{… (read more)}	$209.00
Product Code : C2-08D1-6V	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: _{… (read more)}	$182.00
Product Code : C2-08D2-6V	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: _{… (read more)}	$182.00
Product Code : C2-08DR-6V	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: _{… (read more)}	$208.00
Product Code : C2-08AR-6V	CLICK PLUS discrete/analog combo module - CLICK PLUS discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, Discrete Output: 4-point, relay, (4_{… (read more)}	$209.00
Product Code : C2-DCM	CLICK PLUS Communication Module - CLICK PLUS communication module, Modbus RTU and ASCII, 2 ports, (2) RS-232/RS-485 (6-pin terminal) port(s). For use with all CLICK PLUS PLCs. (2) C2-6TB terminal blocks i_{… (read more)}	$238.00
Product Code : C2-6TB	CLICK Terminal Blocks - CLICK terminal blocks, 90-degree screw type, replacement, 6-pole. For use with C2-DCM communication module.	$35.00
Product Code : C2-FILL	CLICK PLUS option slot cover - CLICK PLUS option slot cover.	$20.00
Product Code : SE-ANT250	STRIDE dome 2.4 GHz WiFi antenna - STRIDE dome 2.4 GHz WiFi antenna, IP67, panel mount, 9.8ft/3m cable length. For use with SE-SL3011-WF VPN router and CLICK PLUS PLCs.	$77.00
Product Code : SE-ANT210	STRIDE whip/straight WiFi antenna - STRIDE whip/straight 2.4 GHz WiFi antenna, IP65, connector mount. For use with SE-SL3011-WF VPN router and CLICK PLUS PLCs.	$21.00
Product Code : C0-10DD1E-D	Click Ethernet PLC - CLICK Ethernet Basic PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at 10_{… (read more)}	$373.00
Product Code : C0-10DD2E-D	Click Ethernet PLC - CLICK Ethernet Basic PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at 10_{… (read more)}	$373.00
Product Code : C0-10DRE-D	Click Ethernet PLC - CLICK Ethernet Basic PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at 10_{… (read more)}	$399.00
Product Code : C0-11DD1E-D	Click Ethernet PLC - CLICK Ethernet Standard PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at_{… (read more)}	$431.00
Product Code : C0-11DD2E-D	Click Ethernet PLC - CLICK Ethernet Standard PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at_{… (read more)}	$431.00
Product Code : C0-11DRE-D	Click Ethernet PLC - CLICK Ethernet Standard PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at_{… (read more)}	$459.00
Product Code : C0-12DD1E-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, si_{… (read more)}	$514.00
Product Code : C0-12DD2E-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, so_{… (read more)}	$514.00
Product Code : C0-12DRE-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, re_{… (read more)}	$546.00
Product Code : C0-12DD1E-1-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, current, Discrete Output: 4-point, sinking, A_{… (read more)}	$514.00
Product Code : C0-12DD1E-2-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, sinking, A_{… (read more)}	$514.00
Product Code : C0-12DD2E-1-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, current, Discrete Output: 4-point, sourcing, _{… (read more)}	$514.00
Product Code : C0-12DD2E-2-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, sourcing, _{… (read more)}	$514.00
Product Code : C0-12DRE-1-D	Click Ethernet Analog PLC - CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, current, Discrete Output: 4-point, relay, Ana_{… (read more)}	$546.00

Memory: 8k
Programming language: Ladder logic
Dimensions: approx 2"W x 3"H x 3"D (55mmW, 85mmH, 75mmD) depending on model
Maximum I/O Capacity: 142
Communications: 2 or 3 ports depending on model (Ethernet & serial comms available)

Memory: 8k
Programming language: Ladder logic
Dimensions: approx 2"W x 3"H x 2.5"D (53mmW, 85mmH, 60mmD) depending on model
I/O Capacity: 1 or 2 option slot I/O modules. Up to 8 stackable I/O modules
Communications: 0 to 3 ports depending on model (Bluetooth & WLAN available- antenna required)

Documentation

(AutomationDirect website) For current $AU please refer to our online store

CLICK/ CLICK PLUS PLC OVERVIEW

CLICK/ CLICK PLUS TECHNICAL SPECIFICATIONS

CLICK CPU Modules

There are thirty-one CLICK CPU modules available in five classes, each with different combinations of built-in I/O types. The CLICK CPU modules all offer the same instruction set, and support all the available optional I/O modules. With the built-in I/O a CPU can be used as a ready-to-go PLC control system without any additional I/O modules.

*Ethernet CPUs support high-speed DC inputs and PID control

CLICK PLUS CPU Modules

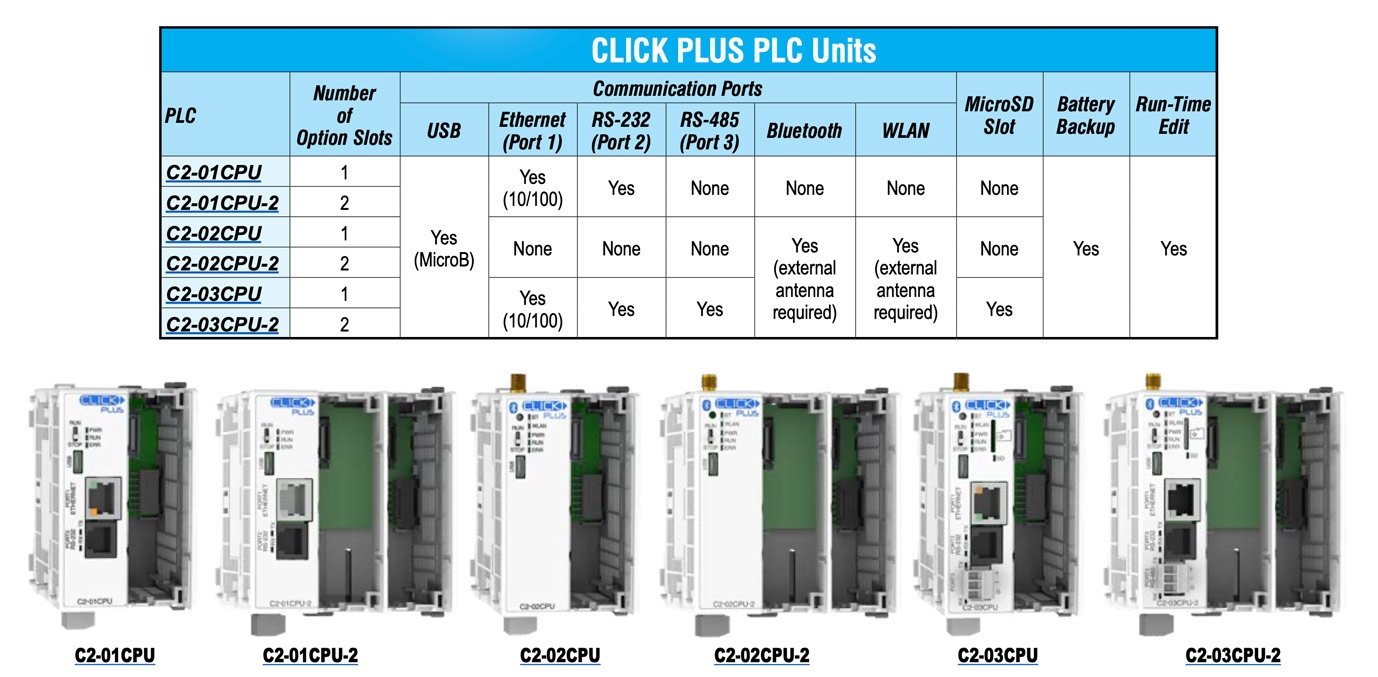

The CLICK PLUS series of controllers offers six CPU options with varying degrees of capability so you can choose the features that best fit your application. Wi-Fi connectivity, Ethernet communication, and data logging are all available options with these low-cost CPUs.

CLICK_PLUS_CPU_COMPARISON_CHART

*Bluetooth provisioning only. Purchase antennas and accessories separately.

Last updated MARCH 2023. This publication may contain references to products produced and/or offered by other companies. The product and company names may be trademarked and are the sole property of their respective owners. Direct Automation Pty Ltd disclaims any proprietary interest in the marks and names of others. All prices shown are trade prices and are exclusive of GST. Prices are subject to change, orders will be accepted at the pricing ruling at the time of our acceptance of orders. Please refer to our online store for current $AU pricelist. Images for display purposes only and may be generic. Whilst all efforts to make information current and accurate, specifications are subject to change without notice. Always consult supplier and manufacture documents for current details.
