8AC In./6DC Relay Out 110/220

PRODUCT DESCRIPTION

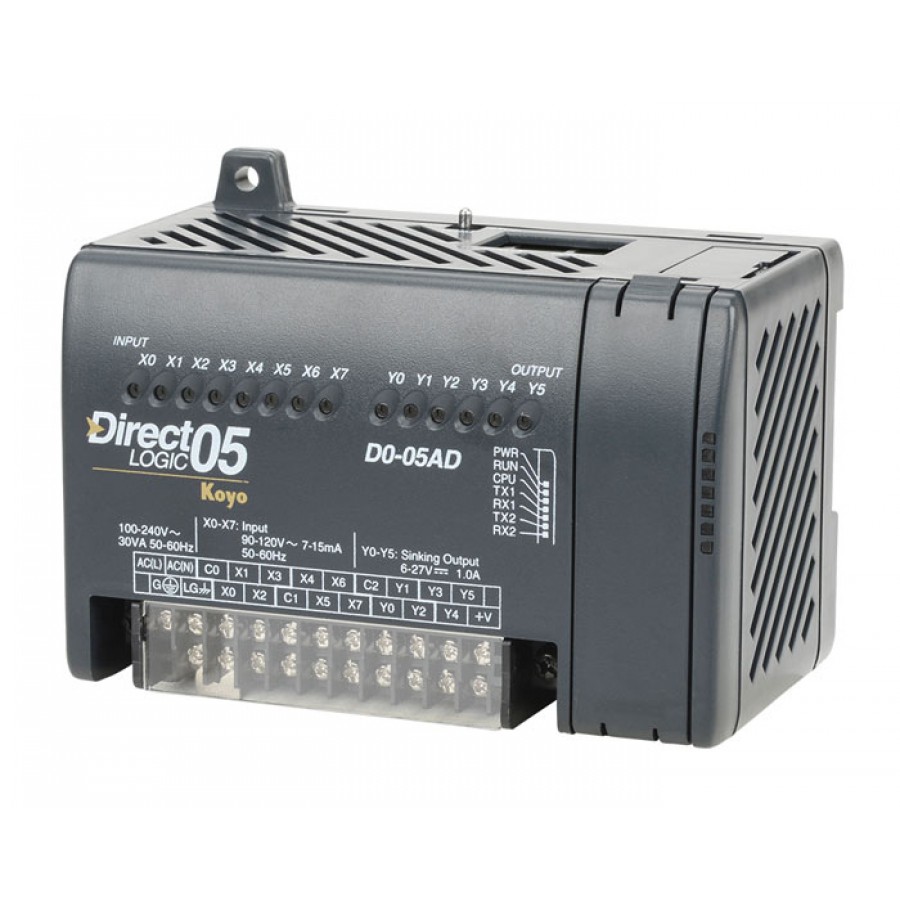

DL05 CPU, 8 AC in / 6 DC out, requires external 110-220 VAC power. 6k words total (2048 words ladder - flash, 4096 words V-memory), RLL/RLLPLUS programming, built-in RS-232C programming port and additional RS-232C communications port. Inputs: 8 AC inputs, 90-120 VAC, 2 isolated commons. Outputs: 6 DC outputs, 6-27 VDC current sinking, 1.0A/point max, 1 common. 2 outputs are configurable for independent CW/CCW pulse train output or step and direction pulse output up to 7kHz (0.5A/point). One option slot available for I/O or communication module.
