Productivity 2000

... MICRO MODULAR & PROCESSING POWER - Engineered to Perform!

The Productivity 2000 PLC is where value meets power. This controller was designed to provide advanced features at an extremely affordable price. The memory, I/O, performance and options of the P2-550 CPU combined with the free software and support, make this PLC stand above the competition.

NEW! The P2-622 has the same features of the P2-550 plus dual software-configurable serial ports (RJ12 and 4-pin) that support both RS232 and RS485, a USB C programming port, and a new system architecture that allows for many future enhancements.

SHOP
PRODUCT INFO

Product Code	Product Name	Price ($AUD)
Product Code : P2-622	Productivity2000 CPU - Productivity2000 CPU, up to 50 MB ladder memory, 4 x 10 character OLED display, microSD card slot, (2) Ethernet 10/100Base-T (RJ45), (1) RS-232/RS-485 (RJ12), (1) RS-232/_{… (read more)}	$605.00
Product Code : P2-550	Productivity2000 CPU module - Productivity2000 CPU module, 50 Mbyte user memory, real time clock/calendar, 4 x 10 character OLED display, RS-232 (RJ12) port with Modbus RTU Master/Slave and ASCII In/o_{… (read more)}	$666.00
Product Code : P2-RS	Productivity2000 remote I/O expansion module - Productivity2000 remote I/O expansion module, 4 x 10 character OLED display, RS-232 (RJ12) port with Modbus RTU Master/Slave and ASCII In/out protocol(s) at up to 115.2k _{… (read more)}	$540.00
Product Code : P2-01DC	Productivity2000 DC base power supply - Productivity2000 DC base power supply, 24-48 VDC nominal input. (1) power supply required per base.	$210.00
Product Code : P2-15B	Productivity2000 I/O base - Productivity2000 I/O base, 15-slot, DIN rail or flush mounting. Holds power supply, CPU and 15 I/O modules; P2-01AC power supply required.	$422.00
Product Code : P2-11B	Productivity2000 I/O base - Productivity2000 I/O base, 11-slot, DIN rail or flush mounting. Holds power supply, CPU and 11 I/O modules; P2-01AC power supply required.	$360.00
Product Code : P2-01AC	Productivity2000 base power supply - Productivity2000 base power supply, 100-240 VAC. One power supply required per base.	$199.00
Product Code : P2-04B	Productivity2000 I/O base - Productivity2000 I/O base, 4-slot, DIN rail or flush mounting. Holds power supply, CPU and 4 I/O modules; P2-01AC power supply required.	$205.00

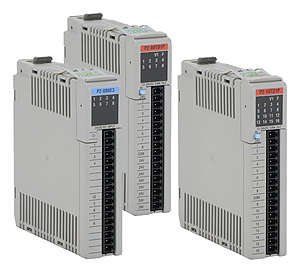

Product Code : P2-32NE3	Productivity2000 discrete input module - Productivity2000 discrete input module, 32-point, 20.4 - 27.6 VAC/DC, sinking/sourcing, 4 isolated common(s), 8 point(s) per common. ZIPLink connector module and pre-wire_{… (read more)}	$262.00
Product Code : P2-16NE3	Productivity2000 discrete input module - Productivity2000 discrete input module, 16-point, 24 VAC/VDC, sinking/sourcing, 2 common(s), isolated, 8 point(s) per common. Requires removable terminal block (sold sepa_{… (read more)}	$183.00
Product Code : P2-32TD1P	Productivity2000 discrete output module - Productivity2000 discrete output module, 32-point, 12-24 VDC, sinking, 4 common(s), 8 point(s) per common, 0.1A/point, short circuit and overload protection. Requires ZIP_{… (read more)}	$262.00
Product Code : P2-15TD2	Productivity2000 discrete output module - Productivity2000 discrete output module, 15-point, 12-24 VDC, sourcing, 1 common(s), 15 point(s) per common, 1A/point. Requires P2-RTB or P2-RTB-1 removable terminal bloc_{… (read more)}	$172.00
Product Code : P2-15TD1	Productivity2000 discrete output module - Productivity2000 discrete output module, 15-point, 3.3-24 VDC, sinking, 2 common(s), 8 point(s) per common, 1A/point. Requires P2-RTB or P2-RTB-1 removable terminal block_{… (read more)}	$175.00
Product Code : P2-08TD2S	Productivity2000 discrete output module - Productivity2000 discrete output module, 8-point, 12-24 VDC, sourcing, 2 isolated common(s), 4 point(s) per common, 2A/point. Requires P2-RTB or P2-RTB-1 removable termin_{… (read more)}	$128.00
Product Code : P2-08TD1S	Productivity2000 discrete output module - Productivity2000 discrete output module, 8-point, 3.3-24 VDC, sinking, 2 isolated common(s), 4 point(s) per common, 2A/point. Requires P2-RTB or P2-RTB-1 removable termin_{… (read more)}	$128.00
Product Code : P2-16TR	Productivity2000 relay output module - Productivity2000 relay output module, 16-point, 6.25 - 24 VDC, 6 - 240 VAC, FORM A (SPST), 2 common(s), 8 point(s) per common, 1A / point, 8A / common @ 60 deg C for both_{… (read more)}	$252.00
Product Code : P2-08TAS	Productivity2000 discrete output module - Productivity2000 discrete output module, 8-point, 120 VAC, 8 isolated common(s), 1 point(s) per common, 1A/point. Requires P2-RTB or P2-RTB-1 removable terminal block or _{… (read more)}	$276.00
Product Code : P2-08NAS	Productivity2000 discrete input module - Productivity2000 discrete input module, 8-point, 120 VAC, 8 isolated common(s), 1 point(s) per common. Requires P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre_{… (read more)}	$203.00
Product Code : P2-16TA	Productivity2000 discrete output module - Productivity2000 discrete output module, 16-point, 100-240 VAC, 2 common(s), jumper selectable isolation, 8 point(s) per common, 0.5A / point, 4A / common external fusing_{… (read more)}	$310.00
Product Code : P2-16NA	Productivity2000 discrete input module - Productivity2000 discrete input module, 16-point, 100-240 VAC, 2 common(s), jumper selectable isolation, 8 point(s) per common. Requires removable terminal block (sold se_{… (read more)}	$277.00

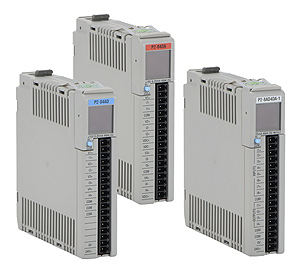

Product Code : P2-08ADL-2	Productivity2000 analog input module - Productivity2000 analog input module, 8-channel, 13-bit resolution, input voltage signal range(s) of 0 - 10 VDC, external 24 VDC required. Requires removable terminal blo_{… (read more)}	$409.00
Product Code : P2-16ADL-1	Productivity2000 analog input module - Productivity2000 analog input module, 16-channel, 13-bit resolution, input current signal range(s) of 0 - 20 mA, external 24 VDC required. No terminal block sold for this_{… (read more)}	$465.00
Product Code : P2-16ADL-2	Productivity2000 analog input module - Productivity2000 analog input module, 16-channel, 13-bit resolution, input voltage signal range(s) of 0 - 10 VDC, external 24 VDC required. No terminal block sold for thi_{… (read more)}	$513.00
Product Code : P2-08DAL-1	Productivity2000 analog output module - Productivity2000 analog output module, 8-channel, 12-bit resolution, output current signal range(s) of 4 - 20 mA, external 24 VDC required. Requires removable terminal bl_{… (read more)}	$529.00
Product Code : P2-08ADL-1	Productivity2000 analog input module - Productivity2000 analog input module, 8-channel, 13-bit resolution, input current signal range(s) of 0 - 20 mA, external 24 VDC required. Requires removable terminal bloc_{… (read more)}	$379.00
Product Code : P2-08DAL-2	Productivity2000 analog output module - Productivity2000 analog output module, 8-channel, 12-bit resolution, output voltage signal range(s) of 0 - 10 VDC, external 24 VDC required. Requires removable terminal b_{… (read more)}	$513.00
Product Code : P2-16DAL-1	Productivity2000 analog output module - Productivity2000 analog output module, 16-channel, 12-bit resolution, output current signal range(s) of 4 - 20 mA, external 24 VDC required. No terminal block sold for th_{… (read more)}	$659.00
Product Code : P2-16DAL-2	Productivity2000 analog output module - Productivity2000 analog output module, 16-channel, 12-bit resolution, output voltage signal range(s) of 0 - 10 VDC, external 24 VDC required. No terminal block sold for t_{… (read more)}	$631.00
Product Code : P2-08NTC	Productivity2000 temperature input module - Productivity2000 temperature input module, thermistor, 8-channel, 16-bit resolution, input thermistor type(s): 2252, 10K-AN Type 3, 10K-CP Type 2, 5K, 3K and 1.8K ohm. P2_{… (read more)}	$657.00
Product Code : P2-04DAL-2	Productivity2000 analog output module - Productivity2000 analog output module, 4-channel, voltage, 12-bit, output voltage signal range(s) of 0-10 VDC, external 24 VDC required. Requires removable terminal block_{… (read more)}	$270.00
Product Code : P2-8AD4DA-1	Productivity2000 analog combo module - Productivity2000 analog combo module, 8-channel input, 4-channel output, current, 16-bit, 0-20 mA, 4-20 mA, sourcing, external 24 VDC required. Requires removable termina_{… (read more)}	$809.00
Product Code : P2-06RTD	Productivity2000 temperature input module - Productivity2000 temperature input module, RTD, 6-channel, 16-bit resolution, input RTD type(s): Pt100, Pt1000, JPt100, Cu10, Cu25 and Ni120, input resistance signal rang_{… (read more)}	$844.00
Product Code : P2-8AD4DA-2	Productivity2000 analog combo module - Productivity2000 analog combo module, 8-channel input, 4-channel output, voltage, 16-bit, 0-5 VDC, 0-10 VDC, 0-5 VDC, 0-10 VDC, sinking / sourcing, external 24 VDC requir_{… (read more)}	$810.00
Product Code : P2-04DAL-1	Productivity2000 analog output module - Productivity2000 analog output module, 4-channel, current, 12-bit, output current signal range(s) of 4-20 mA, external 24 VDC required. Requires removable terminal block _{… (read more)}	$291.00
Product Code : P2-08THM	Productivity2000 temperature input module - Productivity2000 temperature input module, thermocouple, 8-channel, 16-bit resolution, input thermocouple type(s): J, E, K, R, S, T, B, N, C, input voltage signal range(s_{… (read more)}	$829.00
Product Code : P2-08DA-2	Productivity2000 analog output module - Productivity2000 analog output module, 8-channel, voltage, 16-bit, +/- 10 VDC, external 24 VDC required. Requires removable terminal block (sold separately, P2-RTB or P2-_{… (read more)}	$649.00
Product Code : P2-08DA-1	Productivity2000 analog output module - Productivity2000 analog output module, 8-channel, current, 16-bit, 4-20 mA, external 24 VDC required. Requires removable terminal block (sold separately, P2-RTB or P2-RTB_{… (read more)}	$615.00
Product Code : P2-08AD-2	Productivity2000 analog input module - Productivity2000 analog input module, 8-channel, voltage, 16-bit, 0-10 VDC, external 24 VDC required. Requires removable terminal block (sold separately, P2-RTB or P2-RTB_{… (read more)}	$513.00
Product Code : P2-08AD-1	Productivity2000 analog input module - Productivity2000 analog input module, 8-channel, current, 16-bit, 0-20 mA, external 24 VDC required. Requires removable terminal block (sold separately, P2-RTB or P2-RTB-_{… (read more)}	$466.00
Product Code : P2-04DA	Productivity2000 analog output module - Productivity2000 analog output module, 4-channel, voltage or current, 16-bit, +/- 10 VDC, 4-20 mA, sinking / sourcing, external 24 VDC required. Requires removable termin_{… (read more)}	$509.00
Product Code : P2-04AD	Productivity2000 analog input module - Productivity2000 analog input module, 4-channel, voltage or current, 16-bit, +/- 5 VDC, +/- 10 VDC, 0-5 VDC, 0-10 VDC, 0-20 mA, external 24 VDC required. Requires removab_{… (read more)}	$453.00
Product Code : P2-16DA-2	Productivity2000 analog output module - Productivity2000 analog output module, 16-channel, voltage, 16-bit, +/- 10 VDC, external 24 VDC required. No terminal block sold for this module; ZIPLink connector modul_{… (read more)}	$764.00
Product Code : P2-16DA-1	Productivity2000 analog output module - Productivity2000 analog output module, 16-channel, current, 16-bit, 4-20 mA, external 24 VDC required. No terminal block sold for this module; ZIPLink connector module (_{… (read more)}	$799.00
Product Code : P2-16AD-2	Productivity2000 analog input module - Productivity2000 analog input module, 16-channel, voltage, 16-bit, 0-10 VDC, external 24 VDC required. No terminal block sold for this module; ZIPLink connector module (_{… (read more)}	$621.00
Product Code : P2-16AD-1	Productivity2000 analog input module - Productivity2000 analog input module, 16-channel, current, 16-bit, 0-20 mA, external 24 VDC required. No terminal block sold for this module; ZIPLink connector module (Z_{… (read more)}	$562.00
Product Code : P2-SCM	Productivity2000 4-port serial communications module - Productivity2000 4-port serial communications module, (3) RS-232 (RJ12) port(s), (1) RS-485 (4-wire terminal block) port(s), all with Modbus RTU Master/Slave, ASCII IN/OU_{… (read more)}	$431.00
Product Code : P2-HSO	Productivity2000 high-speed pulse output module - Productivity2000 high-speed pulse output module, 2-channel, 1 MHz, 6 general purpose inputs, 5-24 VDC, 4 general purpose outputs, 5-24 VDC. Requires one pre-wired cable _{… (read more)}	$462.00
Product Code : P2-HSI	Productivity2000 high-speed counter input module - Productivity2000 high-speed counter input module, 2-channel, 1 MHz, 2 general purpose inputs, 5-24 VDC, 4 general purpose outputs, 5-24 VDC. Requires one pre-wired cable _{… (read more)}	$462.00
Product Code : P2-RTB-1	P2 term bl 18pin spg clp - Productivity2000 terminal block, 18-pin spring clamp. For use with 2-04AD, P2-04DA, P2-06RTD, P2-08AD-1, P2-08AD-2, P2-08DA-1, P2-08DA-2, P2-08NE3, P2-08TD1P, P2-08TD2P, _{… (read more)}	$18.00
Product Code : MICSD-16G	Memory card - Micro-SD, 16 Gbyte	$73.00

Features of the P2-550 CPU

Memory: 50 MByte total available user memory
Programming language: Ladder logic and Advanced Process Functions
Dimensions:
Maximum I/O Capacity: 4320
Communications: 5 comms ports including Ethernet.

Advanced instructions and task management
Real time clock/ Calendar
Battery included for the retention of the Time and Date along with any Tagname values that are set up as retentive
Hardware auto-discovery
The CPU incorporates a programmable, 4 line x 10 character OLED Display for system alarms, status, tag data readouts and information or for displaying user-defined messages
OLED displays on select analog modules for real-time, no meter required measurements.
2 Serial communications ports: 1 x RS-232 (RJ12) and 1 x RS-485 (3-wire terminal block), both supporting Modbus RTU and ASCII In/Out up to 115.2K baud rate
2 Ethernet ports: 10/100Mbps for connecting the remote slave to the CPU, Modbus TCP for programming and monitoring as well as communications to any Modbus TCP enabled device
1 Micro USB communication port: for program transfer and monitoring
Plug-and-play USB programming (no converter cable needed)
Data logging up to 32GB on a MicroSD card (sold separately)
Tag database and program documentation storage on-board the CPU
Secure Web Server for fast easy access to your data
Choose I/O wiring needs from spring clamp, screw terminal or the popular ZipLink wiring solutions

p2000-cpu-tech-brief-diagram

NEW! P2-622 The new P2-622 CPU is the next generation CPU for the Productivity2000 PLC line. It has has all the functionality of the P2-550 plus dual software-configurable serial ports (RJ12 and 4-pin) that support both RS232 and RS485, a USB C programming port, and a new system architecture that allows for many future enhancements.

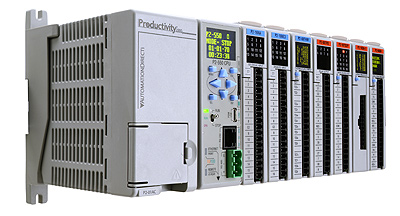

Micro-Modular Rack-Based System

Full line-up of 54 discrete, analogue and specialty I/O modules including high-speed
Up to 480 local I/O points and 4,320 total I/O through remote expansion
Auto-discover local and remote PLC bases, I/O and GS series drives

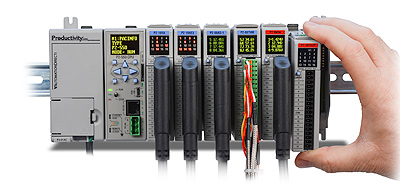

Hot-swappable I/O, no module placement restrictions, no power budget limitations

control-engineering-2016-finalist-award-graphic

AWARD:

Machine & Embedded Control - PACs, PLCs

FINALIST:

Productivity2000® Micro-Modular PLCs

Documentation

(AutomationDirect website) For current $AU prices visit our online store

Productivity2000 Overview
Productivity2000 Technical Specifications PDF icon
Productivity Suite Software Overview

Complimentary Products

The P2-550 CPU is often paired with

P2-16ND3	Productivity2000 discrete input module, 16-point, 12-24 VDC, sinking/sourcing, 2 isolated common(s), 8 point(s) per common. Requires P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables.
P2-16TD2P	Productivity2000 discrete output module, 16-point, 12-24 VDC, sourcing, 1 common(s), 16 point(s) per common, 0.25A per point. Requires removable terminal block (sold separately, P2-RTB or P2-RTB-1); optional ZIPLink connector modules and pre-wired cables are available.
P2-08THM	Productivity2000 temperature input module, thermocouple, 8-channel, 16-bit resolution, input thermocouple type(s): J, E, K, R, S, T, B, N, C, input voltage signal range(s) of 0-39.0625 mV, +/- 39.0625 mV, +/- 78.125 mV, 0-156.25 mV, +/- 156 mV, 0-1.25V. P2-RTB screw terminal block included. Optional P2-RTB-1 spring clamp terminal block sold separately. Pre-wired ZIPLinks not available for temperature modules.
P2-HSI	Productivity2000 high-speed counter input module, 2-channel, 1 MHz, 2 general purpose inputs, 5-24 VDC, 4 general purpose outputs, 5-24 VDC. Requires one pre-wired cable and one ZIPLink module (sold separately): use pre-wired shielded cable ZL-CBL40-xS, where the x designates the following: (no value = 0.5m length), (1 = 1m length) or (2 = 2m length); use ZIPLink connector module ZL-RTB40
P2-HSO	Productivity2000 high-speed pulse output module, 2-channel, 1 MHz, 6 general purpose inputs, 5-24 VDC, 4 general purpose outputs, 5-24 VDC. Requires one pre-wired cable and one ZIPLink module (sold separately): use pre-wired shielded cable ZL-CBL40-xS, where the x designates the following: (no value = 0.5m length), (1 = 1m length) or (2 = 2m length); use ZIPLink connector module ZL-RTB40.
P2-8AD4DA-1	Productivity2000 analog combo module, 8-channel input, 4-channel output, current, 16-bit, 0-20 mA, 4-20 mA, sourcing, external 24 VDC required. Requires removable terminal block (sold separately, P2-RTB or P2-RTB-1); optional ZIPLink connector modules and pre-wired cables are available.

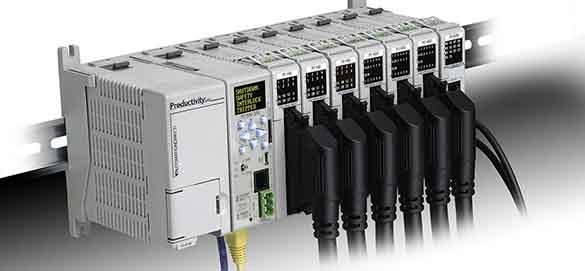

P2000-base-motion-bricktop

Programming Software Highlights

User defined tag-based programming for descriptive I/O naming
Simple-to-use instructions and Easy Math to eliminate complex ladder logic
Tools for quick access to setup, programming, debugging and control
Task Manager for quick and easy prioritization of Ladder Logic code
Structured data types
Task management
Advanced "fill-in-the-blank" instructions
Seamless database connectivity
Graphical HTML-based Help File
Run-time editing
Project file and user documentation stored in CPU
MicroSD card slot on the CPU for data logging
Tag database import to C-more HMI
All in an intuitive Windows-based programming environment

p2000-productivity-software-screen

Last updated MARCH 2023. This publication may contain references to products produced and/or offered by other companies. The product and company names may be trademarked and are the sole property of their respective owners. Direct Automation Pty Ltd disclaims any proprietary interest in the marks and names of others. All prices shown are trade prices and are exclusive of GST. Prices are subject to change, orders will be accepted at the pricing ruling at the time of our acceptance of orders. Please refer to our online store for current $AU pricelist. Images for display purposes only and may be generic. Whilst all efforts to make information current and accurate, specifications are subject to change without notice. Always consult supplier and manufacture documents for current details.
