Safety Products

Safety Products Safety switches are interlocking devices used to monitor (and sometimes lock) machine guards, doors, gates, windows, jaws or other machinery to protect both people and machines. A variety of safety switch styles are available to detect unsafe conditions and isolate power from the hazard.

SHOP
PRODUCT INFO

Product Code	Product Name	Price ($AUD)

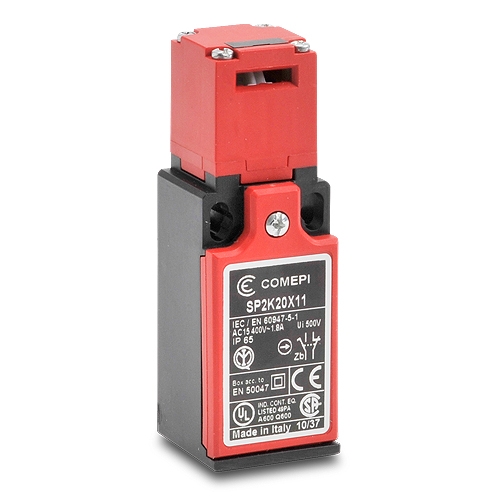

Product Code : SP2K20W02	Safety switch, 90deg, 2NC - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, plastic body, 30 mm wide, 1/2 inch female _{… (read more)}	$40.00
Product Code : SP2K120X11	Safety switch, 360deg, 1NO/1N - Comepi safety switch, tongue (key) interlock operated, 360-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, plastic body, _{… (read more)}	$47.00
Product Code : SP2K120W02	Safety switch, 360deg, 2N/C - Comepi safety switch, tongue (key) interlock operated, 360-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, plastic body, 30 mm wide, 1/2 inch female_{… (read more)}	$47.00
Product Code : SDM2K20X11	Safety switch, 90 deg 1N/O1N/ - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, die-cast alumin_{… (read more)}	$58.00
Product Code : SDM2K20W02	Safety switch, 90 deg, 2 N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, die-cast aluminum body, 50 mm wide, (3) 1/_{… (read more)}	$49.00
Product Code : SBM2K40X11	Safety switch,90deg 1N/O1N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, die-cast alumin_{… (read more)}	$72.00
Product Code : SBM2K40W02	Safety switch, 90deg, 2N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, die-cast aluminum body, 40 mm wide, 1/2 in_{… (read more)}	$72.00
Product Code : SBM2K40X12	Safety switch, 90deg, 1N/O2N/ - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 1 N.O. / 2 N.C. contact(s), slow action break before make, plastic head, die-cast alumin_{… (read more)}	$77.00
Product Code : SBM2K40W03	Safety switch, 90deg, 3N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 3 N.C. contact(s), slow action, plastic head, die-cast aluminum body, 40 mm wide, 1/2 in_{… (read more)}	$79.00
Product Code : SCM2K40X11	Safety switch, 90deg 1N/O1N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, die-cast alumin_{… (read more)}	$73.00
Product Code : SCM2K40W02	Safety switch, 90deg, 2NC - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, die-cast aluminum body, 60 mm wide, (3) 1/_{… (read more)}	$73.00
Product Code : SCM2K40X12	Safety switch, 90deg 1N/O2N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 1 N.O. / 2 N.C. contact(s), slow action break before make, plastic head, die-cast alumin_{… (read more)}	$74.00
Product Code : SCM2K40W03	Safety switch, 90deg 3 N/C - Comepi safety switch, tongue (key) interlock operated, 90-degree adjustable head, 3 N.C. contact(s), slow action, plastic head, die-cast aluminum body, 60 mm wide, (3) 1/_{… (read more)}	$81.00
Product Code : KEY13	Key for safety switches, 22mm - Comepi actuator tongue (key), 22 mm mounting hole spacing, 316 stainless steel, 90 degree mounting tab. For use with Comepi SP2K and SDM2K series safety switches.	$4.00
Product Code : KEY15	Key for safety switches, 13mm - Comepi actuator tongue (key), 13 mm mounting hole spacing, 316 stainless steel, 90 degree mounting tab. For use with Comepi SP2K and SDM2K series safety switches.	$4.00
Product Code : KEY18	Key for safety switches, 15mm - Comepi actuator tongue (key), 15 mm mounting hole spacing, 316 stainless steel, straight mounting tab, shock absorbing. For use with Comepi SP2K and SDM2K series safety s_{… (read more)}	$5.00
Product Code : SP2K72X11	Safety switch, hinge 1N/O1N/C - Comepi safety switch, hollow shaft hinge interlock operated, 12 mm diameter x 20 mm length, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break befor_{… (read more)}	$53.00
Product Code : SP2K72W02	Safety switch, hinge 2 N/C - Comepi safety switch, hollow shaft hinge interlock operated, 12 mm diameter x 20 mm length, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, plast_{… (read more)}	$53.00
Product Code : SP2K61X11	Safety switch, hinge 1N/O1N/C - Comepi safety switch, lever hinge interlock operated, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, plastic body, 30_{… (read more)}	$38.00
Product Code : SP2K61W02	Safety switch, hinge 2 N/C - Comepi safety switch, lever hinge interlock operated, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, plastic body, 30 mm wide, 1/2 inch female N_{… (read more)}	$38.00
Product Code : SDM2K72X11	Safety switch, hinge 1N/O1N/C - Comepi safety switch, hollow shaft hinge interlock operated, 12 mm diameter x 20 mm length, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break befor_{… (read more)}	$67.00
Product Code : SDM2K72W02	Safety switch, hinge 2N/C - Comepi safety switch, hollow shaft hinge interlock operated, 12 mm diameter x 20 mm length, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, die-c_{… (read more)}	$68.00
Product Code : SDM2K61X11	Safety switch, hinge 1NO1N/C - Comepi safety switch, lever hinge interlock operated, 90-degree adjustable head, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, die-cast aluminu_{… (read more)}	$53.00
Product Code : SDM2K61W02	Safety switch, hinge 2 N/C - Comepi safety switch, lever hinge interlock operated, 90-degree adjustable head, 2 N.C. contact(s), slow action, plastic head, die-cast aluminum body, 50 mm wide, (3) 1/2_{… (read more)}	$53.00
Product Code : SDM2K96X11	Safety switch, pull cable - Comepi safety switch, cable-pull interlock operated, no reset, protection up to 15 meters (49 ft.), 1 N.O. and 1 N.C. contact with slow action break before make, 50mm wid_{… (read more)}	$56.00
Product Code : SDM2K98X11	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 15 meters (49 ft.), 1 N.O. and 1 N.C. contact with slow action break before make, 50mm w_{… (read more)}	$72.00
Product Code : SDM2K98W02	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 15 meters (49 ft.), 2 N.C. contacts with slow action, 50mm wide, die-cast aluminum body _{… (read more)}	$72.00
Product Code : SBM2K99W02	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 25 meters (82 ft.), 2 N.C. contacts with slow action, 40mm wide, die-cast aluminum body _{… (read more)}	$67.00
Product Code : SBM2K99W03	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 25 meters (82 ft.), 3 N.C. contacts with slow action, 40mm wide, die-cast aluminum body _{… (read more)}	$66.00
Product Code : SCM2K97W02	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, no reset, protection up to 25 meters (82 ft.), 2 N.C. contacts with slow action, 60mm wide, die-cast aluminum body an_{… (read more)}	$56.00
Product Code : SCM2K97W03	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, no reset, protection up to 25 meters (82 ft.), 3 N.C. contacts with slow action, 60mm wide, die-cast aluminum body an_{… (read more)}	$61.00
Product Code : SCM2K99X11	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 25 meters (82 ft.), 1 N.O. and 1 N.C. contact with slow action break before make, 60mm w_{… (read more)}	$69.00
Product Code : SCM2K99W02	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 25 meters (82 ft.), 2 N.C. contacts with slow action, 60mm wide, die-cast aluminum body _{… (read more)}	$69.00
Product Code : SCM2K99W03	Safety switch, cable-pull - Comepi safety switch, cable-pull interlock operated, with reset, protection up to 25 meters (82 ft.), 3 N.C. contacts with slow action, 60mm wide, die-cast aluminum body _{… (read more)}	$74.00
Product Code : FUN05M015	Steel cable for cable-pull 15m - Steel cable for Comepi cable-pull safety switches, 15 meter (49 ft.) length, 5mm diameter, red plastic coated	$55.00
Product Code : FUN05M025	Steel cable for cable-pull 25m - Steel cable for Comepi cable-pull safety switches, 25 meter (82 ft.) length, 5mm diameter, red plastic coated	$88.00
Product Code : AP2R11X11	Safety limit switch, 1N/O1N/C - Comepi safety limit switch, steel plunger, 90-degree adjustable head, pull-to-reset action, 1 N.O. / 1 N.C. contact(s), slow action break before make, plastic head, plast_{… (read more)}	$34.00
Product Code : AP2R11W02	Safety limit switch, 2N/C - Comepi safety limit switch, steel plunger, 90-degree adjustable head, pull-to-reset action, 2 N.C. contact(s), slow action, plastic head, plastic body, 30 mm wide, 1/2 in_{… (read more)}	$34.00
Product Code : AP2R13X11	Safety limit switch, 1N/O1N/C - Comepi safety limit switch, steel plunger, nylon roller actuator, 90-degree adjustable head, pull-to-reset action, 1 N.O. / 1 N.C. contact(s), slow action break before ma_{… (read more)}	$36.00
Product Code : AP2R13W02	Safety limit switch, 2N/C - Comepi safety limit switch, steel plunger, nylon roller actuator, 90-degree adjustable head, pull-to-reset action, 2 N.C. contact(s), slow action, plastic head, plastic b_{… (read more)}	$36.00
Product Code : AP2R31X11	Safety limit switch, 1N/O1N/C - Comepi safety limit switch, steel plunger, one-way horizontal nylon roller arm lever actuator, 90-degree adjustable head, pull-to-reset action, 1 N.O. / 1 N.C. contact(s)_{… (read more)}	$38.00
Product Code : AP2R31W02	Safety limit switch, 2 N/C - Comepi safety limit switch, steel plunger, one-way horizontal nylon roller arm lever actuator, 90-degree adjustable head, pull-to-reset action, 2 N.C. contact(s), slow ac_{… (read more)}	$38.00
Product Code : AP2R32X11	Safety limit switch, 1N/O1N/C - Comepi safety limit switch, steel plunger, one-way vertical nylon roller arm lever actuator, 90-degree adjustable head, pull-to-reset action, 1 N.O. / 1 N.C. contact(s), _{… (read more)}	$39.00
Product Code : AP2R32W02	Safety limit switch, 2 N/C - Comepi safety limit switch, steel plunger, one-way vertical nylon roller arm lever actuator, 90-degree adjustable head, pull-to-reset action, 2 N.C. contact(s), slow acti_{… (read more)}	$39.00
Product Code : AP2R41X11	Safety limit switch, 1N/O1N/C - Comepi safety limit switch, lever, nylon roller actuator, 90-degree adjustable head, pull-to-reset action, 1 N.O. / 1 N.C. contact(s), slow action break before make, plas_{… (read more)}	$41.00
Product Code : AP2R41W02	Safety limit switch, 2N/C - Comepi safety limit switch, lever, nylon roller actuator, 90-degree adjustable head, pull-to-reset action, 2 N.C. contact(s), slow action, plastic head, plastic body, 30 _{… (read more)}	$42.00
Product Code : AP2R51X11	Safety limit switch, 1N/O1N/C - Comepi safety limit switch, adjustable lever, nylon roller actuator, 90-degree adjustable head, pull-to-reset action, 1 N.O. / 1 N.C. contact(s), slow action break before_{… (read more)}	$44.00
Product Code : AP2R51W02	Safety limit switch, 2N/C - Comepi safety limit switch, adjustable lever, nylon roller actuator, 90-degree adjustable head, pull-to-reset action, 2 N.C. contact(s), slow action, plastic head, plasti_{… (read more)}	$44.00
Product Code : OCC08	Cable-pull eye bolt - Comepi cable-pull eye bolt for safety switches	$3.00
Product Code : MOR05	Cable-pull cable clamp - Comepi cable-pull cable clamp for safety switches	$3.00

Non-Contact Magnetic Safety Switches
Safety Interlock Switches

Non-Contact Magnetic Safety Switches ... New!
Non-contact safety switches are interlocking devices that are designed to protect both people and machines. They are preferred in certain applications where no physical contact (under normal conditions) takes place between the switch and actuator.

Available in industry standard style plastic and stainless steel housings
Styles: Non-contact magnetic and non-contact coded magnetic
Wide (>10mm) sensing distance
High tolerance to misalignment after sensing
Enclosure protections: IP67, IP69K
All Models: cULus, RoHS, CE approvals

Non-Contact Coded Magnetic Safety Switches
Coded non-contact safety switches use coded magnets to close the circuits, thereby offering even more protection. The safety switch and actuator work together in such a way that the enable condition from the safety device is only triggered if the actuating element is within the switch's response range and the code on the actuator matches that of the switch.

Non-Contact Magnetic Safety Switches
These are simple magnetic reed switches and are designed to conform to IEC 60947-5-3 and be used as directed by EN1088, EN ISO12100 and EN 60204-1.

Non-Contact Magnetic Safety Switches Overview

Safety Interlock Switches
These safety switches are developed and manufactured according to IEC and EN European standards and are UL listed for Type 4 machine safety/ OSHA machine guarding.

What makes these Machine Safety Switches?

Normally closed contacts that guarantee a Positive Break
Output configurations offered for redundant N.C. contact and N.O. feedback
Not easily defeatable

Door switches need correct keys to close

Some limit switch models require a manual reset once tripped
Actuators designed for common machine safety applications

Door Key and Hinge Switches
Pull Cord Assemblies
Safety Limit Switches

All units have CE, UL and CSA approvals

Features

Visible operation
Rated operational current:
AC-15: 24V, 10A; 230V, 3.1A; 380V, 1.9A
DC-13: 24V, 2.8A; 250V, 0.27A
Consistent precise operating points
Immunity to electromagnetic disturbances
Electrically separated contacts with positive opening operation on N.C. contacts
Actuation speeds of 0.5 m/s (maximum) to 0.01 m/s (minimum)
IEC 947-5-1, EN 60947-5-1, UL 508, CSA C22.2 No. 14 approvals
Machine safety switches start at $13.00 (AP2R11X11)

Safety Switch Product Categories

Tongue Interlock Safety Switches & Actuators
includes safety switches from SP2, SDM, SBM, SCM Series
Hinge Interlock Safety Switches
includes safety switches from SP2, SDM Series
Cable-Pull Safety Switches
includes safety switches from SDM, SBM, SCM Series
Safety Limit Switches
AP2 Series safety limit switches
Accessories

Machine Safety Application - Safety Switches Overview

Safety switches: Safety Interlock switches, safety limit switches

Safety Switches (Interlock and Safety Limit Switches)

These safety interlock and safety limit switches are developed and manufactured according to IEC and EN European standards and are UL listed for Type 4 machine safety/ OSHA machine guarding.

Safety Interlock and Safety Limit Switch Series

SP2 Series - 30mm plastic housing safety interlock switches with tongue (key) interlock, shaft and lever hinge pin
SDM Series - 50mm metal housing safety interlock switches with tongue (key) interlock, shaft and lever hinge interlock, and cable-pull actuators
SBM Series - 40mm metal housing safety interlock switches with tongue (key) interlock and cable-pull actuators
SCM Series - 60mm metal housing safety interlock switches with tongue (key) interlock and cable-pull actuators
AP2 Series - 30mm plastic housing contact-actuated safety limit switches with pull button reset

Features

Visible operation
Ability to switch large currents
Consistent precise operating points
Immunity to electromagnetic disturbances
Electrically separated contacts with positive opening operation on N.C. contacts
Actuation speeds of 0.5 m/s (maximum) to 0.01 m/s (minimum)

Safety Interlock and Safety Limit Switches Overview

SP2 Series
30mm safety interlock switches

Tongue (key) interlock, shaft and lever hinge pin
Plastic casing, double insulated
IEC IP65 Rated
1 Cycle per second maximum switching frequency
CE, UL file E189258, CSA 176294 approvals

SDM Series
50mm safety interlock switches

Tongue (key) interlock, shaft and lever hinge interlock, cable-pull actuators
ZAMAK (zinc alloy) casing
IEC IP66 Rated
1 Cycle per second maximum switching frequency
CE, UL file E189258, CSA 176294 approvals

SBM Series
40mm safety interlock switches

Tongue (key) interlock, cable-pull actuators
Aluminum casing
IEC IP66 Rated
1 Cycle per second maximum switching frequency
CE, UL file E189258, CSA 176294 approvals

SCM Series
60mm safety interlock switches

Tongue (key) interlock, cable-pull actuators
Aluminum casing
IEC IP66 Rated
1 Cycle per second maximum switching frequency
CE, UL file E189258, CSA 176294 approvals

AP2 Series
30mm safety limit switches with pull button reset

Pull button reset
Plastic casing, double insulated
IEC IP65 Rated
1 Cycle per second maximum switching frequency
CE, UL file E189258, CSA 176294 approvals

Safety Switch Product Categories

Tongue Interlock Safety Switches & Actuators
includes switches from SP2, SDM, SBM, SCM Series
Hinge Interlock Safety Switches
includes switches from SP2, SDM Series
Cable-Pull Safety Switches
includes switches from SDM, SBM, SCM Series
Safety Limit Switches
AP2 Series switches
Safety Switch Accessories
Actuator tongue (keys), eye bolt, eye thimble, cable clamp, steel cable

Warning: Machine safety products sold by Direct Automation Pty Ltd are Safety components only.

The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. Direct Automation Pty Ltd cannot certify that our products used solely or in conjunction with other Automation Direct Pty Ltd or other vendors products will assure safety for any application.

Any person using or applying any products sold by Direct Automation Pty Ltd is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.

Direct Automation Pty Ltd does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
