Industrial Limit Switches
Heavy-Duty Metal, Double-Insulated Plastic, Miniature Double-Insulated Plastic, and Compact Limit Switches
- New! ... Compact Limit Switches (AEM2G Series)
- Heavy Duty IEC Limit Switches (ABM Series)
- Double Insulated (PBT) Limit Switches (ABP Series)
- Miniature Double Insulated (PBT) Limit Switches (AAP Series)
Compact Limit Switches - AEM2G Series |
New! ... Compact Limit Switches - AEM2G Series Our AEM2G series compact limit switches have die cast metal housings that are epoxy resin filled for IP67 rating. These compact sized metal limit switches have standard U.S. 25mm mounting hole spacing.
- 35mm wide die-cast metal housings
- 3-meter cable on all limit switch units
- 1 N.O. and 1 N.C. contact on all limit switch units
- Compact size with standard 25mm hole spacing
- Wide offering of limit switch actuator styles
- Epoxy resin-filled for IP67 rating
- Both snap-action and slow-make/slow-break contacts are available
- AEM2G Series Limit Switches Overview
|

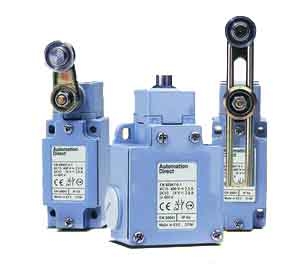

Heavy-Duty Metal IEC Limit Switches (ABM Series) |
Heavy-duty IEC Limit Switches (ABM Series) Heavy-duty metal - the most rugged IEC limit switch around. Our heavy duty IEC limit switches feature the most popular limit switch actuator styles (plungers, short and adjustable levers with rollers, and steel and plastic rods) and a wide variety of cable entry options.
- Die cast aluminum bodies for heavy-duty industrial limit switch applications
- Single and multiple conduit openings save wiring time and money when interconnecting several limit switches
- Conduit openings in 1/2 inch NPT or PG13.5 sizes
- Splined actuator shafts for fine adjustment of limit switch to fit all applications
- Eight different limit switch actuator styles, including roller levers and plungers
- Six interchangeable combinations of contact blocks
- ABM Series Limit Switches Overview
|
Double-insulated (PBT) Limit Switches |
Double-insulated (PBT) Limit Switches ABP series limit switches feature the most popular actuator styles (plungers, short and adjustable levers with rollers, and steel and plastic rods) and a wide variety of cable entry options.Electrically-isolated PBT (plastic) bodies for corrosive environments Single conduit openings in 1/2 inch NPT or PG13.5 sizes
- Splined actuator shafts for very fine adjustment of limit switch to fit all applications
- Eight different limit switch actuator styles including roller levers, plungers, and wobble sticks
- Six interchangeable combinations of contact blocks
- ABP Series Limit Switches Overview
|
Miniature Double-insulated (PBT) Limit Switches |
Miniature Double-insulated (PBT) Limit Switches AAP series limit switches feature small bodies for mounting in tight spaces; and the most popular limit switch actuator styles (plungers, short and adjustable levers with rollers, and steel and plastic rods) with a wide variety of cable entry options.
- Electrically-isolated PBT (plastic) bodies for corrosive environments
- Single conduit openings in 1/2 inch NPT or PG13.5 sizes
- Splined actuator shafts for very fine adjustment of limit switch to fit all applications
- Eight different limit switch actuator styles, including roller levers, plungers, and wobble sticks
- Six interchangeable combinations of contact blocks
- AAP Series Limit Switches Overview
|
