CWM Contactors

Up to 800A / 450kW (AC-3)
3 pole and 4 pole versions
Wide range of accessories
Type 1 / Type 2 coordination

SHOP
PRODUCT INFO

Product Code	Product Name	Price ($AUD)
Product Code : RW67-2D3-U050	Therm O/L Relay (Rge 32-50A) - Thermal overload relay bi-metallic adjustable FLA range 32-50 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$99.00
Product Code : CWM50-00-30D02	50A cont. 3P(24V 50/60Hz) - Contactor 50 Amps 3 Normally Open Power poles Coil voltage 24 VAC. 0 Auxiliary Contacts	$125.00
Product Code : CWM50-00-30D25	50A cont. 3P(240V 50/60Hz) - Contactor 50 Amps 3 Normally Open Power poles Coil voltage 240 VAC. 0 Auxiliary Contacts	$125.00
Product Code : CWM50-00-30C34	50A cont. 3P(24..28V dc) - Contactor 50 Amps 3 Normally Open Power poles Coil voltage 24..28 VDC. 0 Auxiliary Contacts	$390.00
Product Code : CWM65-00-30C34	65A cont. 3P(24..28V dc) - Contactor 65 Amps 3 Normally Open Power poles Coil voltage 24..28 VDC. 0 Auxiliary Contacts	$440.00
Product Code : CWM65-00-30D25	65A cont. 3P(240V 50/60Hz) - Contactor 65 Amps 3 Normally Open Power poles Coil voltage 240 VAC. 0 Auxiliary Contacts	$142.00
Product Code : CWM65-11-30D02	65A cont. 3P(24V 50/60Hz) - Contactor 65 Amps 3 Normally Open Power poles Coil voltage 24 VAC 1 Normally Open 1 Normally Close contact	$150.00
Product Code : CWM80-00-30C34	80A cont. 3P(24..28V dc) - Contactor 80 Amps 3 Normally Open Power poles Coil voltage 24..28 VDC. 0 Auxiliary Contacts	$475.00
Product Code : CWM80-00-30D02	80A cont. 3P(24VDC 50/60HZ) - Contactor 80 Amps 3 Normally Open Power poles Coil voltage 24 VAC. 0 Auxiliary Contacts	$150.00
Product Code : CWM80-00-30D25	80A cont. 3P(240V 50/60Hz) - Contactor 80 Amps 3 Normally Open Power poles Coil voltage 240 VAC. 0 Auxiliary Contacts	$150.00
Product Code : CWM95-00-30C34	95A cont. 3P(24..28V dc) - Contactor 95 Amps 3 Normally Open Power poles Coil voltage 24..28 VDC. 0 Auxiliary Contacts	$490.00
Product Code : CWM95-00-30D02	95A cont. 3P(415V 50/60HZ) - Contactor 95 Amps 3 Normally Open Power poles Coil voltage 24 VAC. 0 Auxiliary Contacts	$220.00
Product Code : CWM95-00-30D25	95A cont. 3P(240V 50/60Hz) - Contactor 95 Amps 3 Normally Open Power poles Coil voltage 240 VAC. 0 Auxiliary Contacts	$220.00
Product Code : CWM105-00-30C34	105A cont. 3P(24..28V dc) - Contactor 105 Amps 3 Normally Open Power poles Coil voltage 24..28 VDC. 0 Auxiliary Contacts	$480.00
Product Code : CWM105-00-30D02	105A cont. 3P(24V 50/60Hz) - Contactor 105 Amps 3 Normally Open Power poles Coil voltage 24 VAC . 0 Auxiliary Contacts	$230.00
Product Code : CWM105-11-30D25	105A cont. 3P(240V 50/60Hz) - Contactor 105 Amps 3 Normally Open Power poles Coil voltage 240 VAC 1 Normally Open 1 Normally Closed contact	$230.00
Product Code : CWM150-22-30E02	150A cont. 3P(24..28V ac/dc) - Contactor 150 Amps 3 Normally Open Power poles Coil voltage 24..28 VAC 2 Normally Open 2 Normally Closed Contacts	$495.00
Product Code : CWM150-22-30E13	150A cont. 3P(208..250V ac/dc) - Contactor 150 Amps 3 Normally Open Power poles Coil voltage 208..250 VAC 2 Normally Open 2 Normally Closed Contacts	$495.00
Product Code : CWM180-22-30E02	180A cont. 3P(24..28V ac/dc) - Contactor 180 Amps 3 Normally Open Power poles Coil voltage 24..28 VAC 2 Normally Open 2 Normally Closed Contacts	$795.00
Product Code : CWM180-22-30E13	180A cont. 3P(208..250V ac/dc) - Contactor 180 Amps 3 Normally Open Power poles Coil voltage 208..250 VAC 2 Normally Open 2 Normally Closed Contacts	$795.00
Product Code : CWM250-22-30E02	250A cont. 3P(24..28V ac/dc) - Contactor 250 Amps 3 Normally Open Power poles Coil voltage 24..28 VAC 2 Normally Open 2 Normally Closed Contacts	$960.00
Product Code : CWM250-22-30E13	250A cont. 3P(208..250V ac/dc) - Contactor 250 Amps 3 Normally Open Power poles Coil voltage 208..250 VAC 2 Normally Open 2 Normally Closed Contacts	$960.00
Product Code : CWM300-22-30E02	300A cont. 3P(24..28V ac/dc) - Contactor 300 Amps 3 Normally Open Power poles Coil voltage 24..28 VAC 2 Normally Open 2 Normally Closed Contacts	$1,100.00
Product Code : CWM300-22-30E13	300A cont. 3P(208..250V ac/dc) - Contactor 300 Amps 3 Normally Open Power poles Coil voltage 208..250 VAC 2 Normally Open 2 Normally Closed Contacts	$1,100.00
Product Code : BCXMF-01	Aux. cont (1NC) - Aux. Contact (1NC)	$8.00

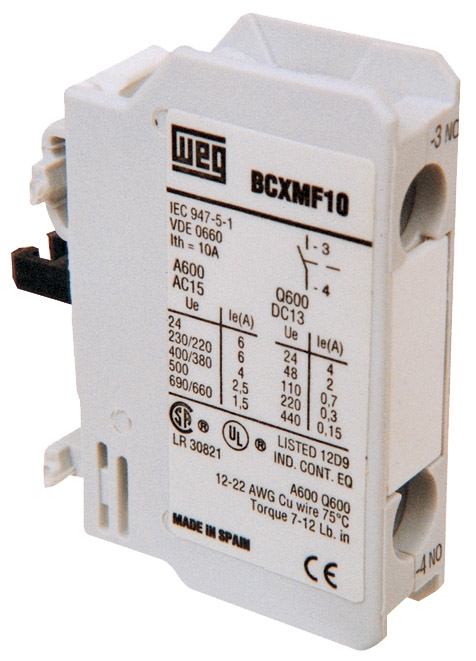

Product Code : BCXMF-10	Aux. cont (1NO) - Aux. Contact (1NO)	$8.00
Product Code : BCXMFR01	Aux. cont (1NC - late break) - Aux. Contact (1NC - late break)	$10.00
Product Code : BCXMFA10	Aux. cont (1NO - early make) - Aux. Contact (1NO - early make)	$10.00
Product Code : BCXML-11	Aux. cont (1NC + 1NO) - Aux. Contact (1NC + 1NO)	$15.00
Product Code : BCXML20	Aux. cont (2NO) - Aux. Contact (2NO)	$15.00
Product Code : BMP CWM150	Term. Covers suits CWM112/150 - Terminal Covers suits CWM112/150	$75.00
Product Code : BMP CWM180	Term. Covers suits CWM180 - Terminal Covers suits CWM180 Contactor	$75.00
Product Code : BLIM 112-300	Mech Inter/lck Blk CWM112-300 - Mechanical Interlock Block CWM112-CWM300	$55.00
Product Code : BLIM 9-105	Mech Inter/lck Blk CWM09-105 - Mechanical Interlock Block CWM09-CWM105	$20.00
Product Code : RW67-1D3-U050	Therm O/L Relay (Rge 32-50A) - Thermal overload relay bi-metallic adjustable FLA range 32-50 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$99.00
Product Code : RW67-2D3-U057	Therm O/L Relay (Rge 40-57A) - Thermal overload relay bi-metallic adjustable FLA range 40 -57 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$99.00
Product Code : RW67-2D3-U063	Therm O/L Relay (Rge 50-63A) - Thermal overload relay bi-metallic adjustable FLA range 50 -63 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$99.00
Product Code : RW67-2D3-U070	Therm O/L Relay (Rge 57-70A) - Thermal overload relay bi-metallic adjustable FLA range 57 -70 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$120.00
Product Code : RW67-2D3-U080	Therm O/L Relay (Rge 63-80A) - Thermal overload relay bi-metallic adjustable FLA range 63 -80 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$120.00
Product Code : RW317-1D3-U150	Therm O/L Relay (Rge 100-150A) - Thermal overload relay bi-metallic adjustable FLA range 100 -150 Amps tripping class 10 phase loss sensitive , 155 mm frame hand/ Auto / Reset button	$260.00
Product Code : RW117-1D3-U097	Therm O/L Relay (Rge 75-97A) - Thermal overload relay bi-metallic adjustable FLA range 75 -97 Amps tripping class 10 phase loss sensitive , 50 mm frame hand/ Auto / Reset button	$155.00
Product Code : RW117-1D3-U112	Therm O/L Relay (Rge 90-112A) - Thermal overload relay bi-metallic adjustable FLA range 90 -112Amps tripping class 10 phase loss sensitive , 75 mm frame hand/ Auto / Reset button	$155.00
Product Code : RW317-1D3-U215	Therm O/L Relay (Rge 140-215A) - Thermal overload relay bi-metallic adjustable FLA range 140 -215 Amps tripping class 10 phase loss sensitive , 155 mm frame hand/ Auto / Reset button	$260.00
Product Code : RW317-1D3-U310	Therm O/L Relay (Rge 200-310A) - Thermal overload relay bi-metallic adjustable FLA range 200 -310 Amps tripping class 10 phase loss sensitive , 155 mm frame hand/ Auto / Reset button	$290.00

WEG CWM Series Contactors

From 9A up to 105A
From 112A to 800A and CWM Overload Relays

CWM Contactors - from 9 up to 105A

WEG’s three-pole contactors present high technology and safety, and easy installation. Besides, offer enclosed construction according to VDE 0106, UL approval, and easy access connections for one or two conductors.

WEG CWM Series Contactors and RW Overloads

Main Features

UL marked
Enclosed construction against penetration of impurities and protected from touch according to VDE 0106
Easy access connections for one or two conductors
Wide range of accessories, with frontal and side mounting
Fastening system for direct mounting on DIN Rail EN 50.002 up to 105A AC-3
In compliance with Standards IEC 60947-1, IEC 660947-4-1, VDE 0660/102, UL-508, CSA C.22.2/14 and CENELEC HD 419

Available Models

CWM 50

CWM 95

CWM 65

CWM 105

CWM 80

Overload Relays

RW 17

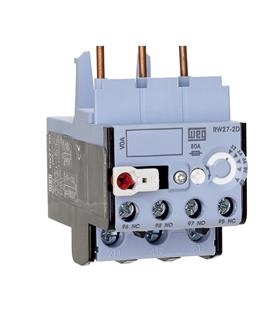

RW 27

RW 67-2D

RW 117-1D

RW 67-1D

WEG CWM Series Accessories/Assembly Diagram
cwm

[enlarge]

WEG CWM Contactors and overload Overview

CAD Library - 2D / 3D drawings

Contactors 112A to 800A and CWM Overload Relays

WEG’s three-pole contactors present high technology and safety, and easy installation. For auxiliary contacts, there are two possibilites: through fixed auxiliary contacts or through additional auxiliary blocks.

Main Features

WEG CWM Series Contactors and RW Overloads

Available Models


Overload Relays

WEG CWC Series Accessories/Assembly Diagram
cwm

[enlarge]

\ WEG CWM Contactors and overload Overview
