Mini CWC Contactors & Overload Relays

Compact
Up to 22A / 11kW (AC-3)
Built in Aux. Contacts up to 16A
Low Consumption DC Coils
Direct Mounting on Overload Relays

SHOP
PRODUCT INFO

Product Code	Product Name	Price ($AUD)
Product Code : CWC025-00-20D25	Mini Cont 22A 2Pole 240VAC - Mini contactor 22 Amps 2 Normally open Power poles Coil voltage 240 VAC zero Auxiliary contact	$31.00
Product Code : RW17-1D3-D004	OVERLOAD RELAY 0.28-0.4A - Thermal overload relay bi-metallic adjustable FLA range 0.28-0.4 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-C063	OVERLOAD RELAY 0.4-0.63A - Thermal overload relay bi-metallic adjustable FLA range 0.4-0.63 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-D008	OVERLOAD RELAY 0.56-0.8A - Thermal overload relay bi-metallic adjustable FLA range 0.56-0.8 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-D012	OVERLOAD RELAY 0.8-1.2A - Thermal overload relay bi-metallic adjustable FLA range 0.8 -1.2 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-D018	OVERLOAD RELAY 1.2-1.8A - Thermal overload relay bi-metallic adjustable FLA range 1.2 -1.8 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-D028	OVERLOAD RELAY 1.8-2.8A - Thermal overload relay bi-metallic adjustable FLA range 1.8 -2.8 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-D063	OVERLOAD RELAY 4-6.3A - Thermal overload relay bi-metallic adjustable FLA range 4.0 -6.3 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-D125	OVERLOAD RELAY 8-12A - Thermal overload relay bi-metallic adjustable FLA range 8.0 -12.5 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-U004	OVERLOAD RELAY 2.8-4A - Thermal overload relay bi-metallic adjustable FLA range 2.8 -4.0 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-U008	OVERLOAD RELAY 5.6-8A - Thermal overload relay bi-metallic adjustable FLA range 5.6 -8.0 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-U010	OVERLOAD RELAY 7-10A - Thermal overload relay bi-metallic adjustable FLA range 7 -10 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-U015	OVERLOAD RELAY 10-15A - Thermal overload relay bi-metallic adjustable FLA range 10-15 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-1D3-U017	OVERLOAD RELAY 11-17A - Thermal overload relay bi-metallic adjustable FLA range 11-17 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC07)	$31.00
Product Code : RW17-2D3-D125	OVERLOAD RELAY 8-12.5A - Thermal overload relay bi-metallic adjustable FLA range 8.0 -12.5 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC025)	$31.00
Product Code : RW17-2D3-U010	OVERLOAD RELAY 7-10A - Thermal overload relay bi-metallic adjustable FLA range 7 -10 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC025)	$31.00
Product Code : RW17-2D3-U015	OVERLOAD RELAY 10-15A - Thermal overload relay bi-metallic adjustable FLA range 10-15 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC025)	$31.00
Product Code : RW17-2D3-U017	OVERLOAD RELAY 11-17A - Thermal overload relay bi-metallic adjustable FLA range 11-17 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC025)	$31.00
Product Code : RW17-2D3-U023	OVERLOAD RELAY 15-23A - Thermal overload relay bi-metallic adjustable FLA range 15-23 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC025)	$33.00
Product Code : RW17-2D3-U032	OVERLOAD RELAY 22-32A - Thermal overload relay bi-metallic adjustable FLA range 22-32 Amps tripping class 10 phase loss sensitive , 45 mm frame hand/ Auto / Reset button (CWC025)	$33.00
Product Code : BFC0-20	AUX CONT FRONT MOUNT 2 N.O. - Auxiliary contact, contains 2 N.O. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor.	$10.00
Product Code : BFC0-11	AUX CONT FRONT MOUNT 1 NO/1 NC - Auxiliary contact, contains 1 N.O. and 1 N.C. contact, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor.	$10.00
Product Code : BFC0-02	AUX CONTACT FRONT MOUNT 2 N.C. - Auxiliary contact, contains 2 N.C. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor.	$10.00
Product Code : BFC0-40	AUX CONTACT FRONT MOUNT 4 N.O. - Auxiliary contact, contains 4 N.O. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor with an AC voltage coil_{… (read more)}	$19.00
Product Code : BFC0-22	AUX CONTACT FRONT MOUNT 2 NO/2 - Auxiliary contact, contains 2 N.O. and 2 N.C. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor with an AC v_{… (read more)}	$19.00
Product Code : BFC0-04	AUX CONTACT FRONT MOUNT 4 N.C. - Auxiliary contact, contains 4 N.C. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor with an AC voltage coil_{… (read more)}	$19.00
Product Code : BFC0-31	AUX CONTACT FRONT MOUNT 3 N.O. - Auxiliary contact, contains 3 N.O. and 1 N.C. contact, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor with an AC vo_{… (read more)}	$19.00
Product Code : BFC0-13	AUX CONTACT FRONT MOUNT 1 N.O/ - Auxiliary contact, contains 1 N.O. and 3 N.C. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC07 through CWC016 series miniature contactor with an AC v_{… (read more)}	$19.00
Product Code : BFC025-20	AUX CONTACT FRONT MOUNT 2 N.O. - Auxiliary contact, contains 2 N.O. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC025 series miniature contactor.	$10.00

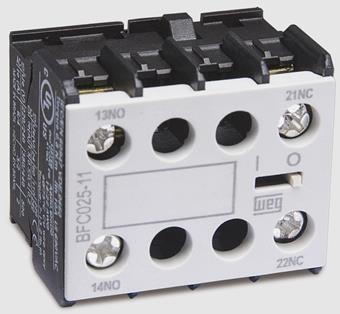

Product Code : BFC025-11	AUX CONTACT FRONT MOUNT 1 N.O. - Auxiliary contact, contains 1 N.O. and 1 N.C. contact, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC025 series miniature contactor.	$10.00
Product Code : BFC025-02	AUX CONTACT FRONT MOUNT 2 N.C. - Auxiliary contact, contains 2 N.C. contacts, front mounted, 240VAC, 10A rated. Use with any 3-pole CWC025 series miniature contactor.	$10.00
Product Code : RCC0-1 D49	SURGE SUPPRES 12-24VAC - Surge suppressor, resistor-capacitor circuit, 12-24 VAC, 50-60 Hz. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : RCC0-2 D53	SURGE SUPPRESSOR 24-48VAC - Surge suppressor, resistor-capacitor circuit, 24-48 VAC, 50-60 Hz. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : RCC0-3 D55	SURGE SUPPRES 50-127VAC - Surge suppressor, resistor-capacitor circuit, 50-127 VAC, 50-60 Hz. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : RCC0-4 D63	SURGE SUPPRES 130-250VAC - Surge suppressor, resistor-capacitor circuit, 130-250 VAC, 50-60 Hz. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : VRC0-1 E49	SURGE SUPPRES 12-48VAC/12-60VD - Surge suppressor, varistor circuit, 12-48 VAC 50-60 Hz, 12-60 VDC. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : VRC0-2 E34	SURGE SUPPRES 50-127VAC/60-180 - Surge suppressor, varistor circuit, 50-127 VAC 50-60 Hz, 60-180 VDC. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : VRC0-3 E50	SURGE SUPPRES 130-275VAC/180-3 - Surge suppressor, varistor circuit, 130-275 VAC 50-60 Hz, 180-300 VDC. Use with any CWC07 through CWC025 series miniature contactor.	$10.00
Product Code : RMC0	LATCH BLOCK FRONT MOUNT FOR MU - Latch block, front mounted, use with any CWC07 through CWC016 series miniature contactor. Mechanically connects two CWC series mini contactors and interlocks them so that_{… (read more)}	$8.00
Product Code : ECC0-R	WIRING KIT REVERSING FOR MULTI - Reversing wiring kit. Use with any CWC07 through CWC016 series miniature contactor.	$19.00
Product Code : ECC0-SD	WIRING KIT STAR-DELTA FOR MULT - Star-Delta wiring kit. Use with any CWC07 through CWC016 series miniature contactor.	$19.00
Product Code : BIC0	Mechanical Interlock Front Mounted - Mechnical interlock block for mini contactor CWC07-016	$6.00

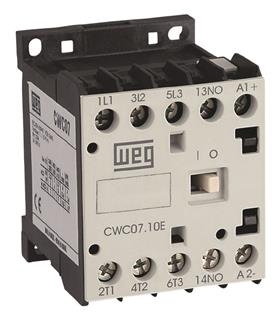

Product Code : CWC07-10-30D25	Mini Cont 7A 3POLE 240VAC 1NO - Mini contactor 7 Amps 3 Normally open Power poles Coil voltage 240 VAC 1 Normally Open Auxiliary contact	$23.00
Product Code : CWC07-10-30C03	Mini Cont 7A 3POLE 24VDC 1NO - Mini contactor 7 Amps 3 Normally open Power poles Coil voltage 24 VDC 1 Normally Open Auxiliary contact	$31.00
Product Code : CWC07-10-30D02	Mini Cont 7A 3POLE 24VAC 1NO - Mini contactor 7 Amps 3 Normally open Power poles Coil voltage 24 VAC 1 Normally Open Auxiliary contact	$23.00
Product Code : CWC09-10-30D25	Mini Cont 9A 3Pole 240VAC 1NO - Mini contactor 9 Amps 3 Normally open Power poles Coil voltage 240 VAC 1 Normally Open Auxiliary contact	$25.00
Product Code : CWC09-10-30C03	Mini Cont 9A 3Pole 24VDC 1NO - Mini contactor 9 Amps 3 Normally open Power poles Coil voltage 24 VDC 1 Normally Open Auxiliary contact	$34.00
Product Code : CWC09-10-30D02	Mini Cont 9A 3Pole 24VAC 1NO - Mini contactor 9 Amps 3 Normally open Power poles Coil voltage 24 VAC 1 Normally Open Auxiliary contact	$25.00

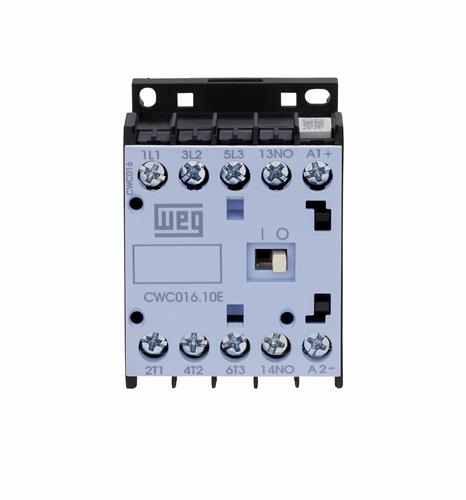

Product Code : CWC016-10-30C03	Mini Cont 16A 3Pole 24VDC 1NO - Mini contactor 16 Amps 3 Normally open Power poles Coil voltage 24 VDC 1 Normally Open Auxiliary contact	$37.00
Product Code : CWC025-00-30D25	Mini Cont 22A 3Pole 240VAC - Mini contactor 22 Amps 3 Normally open Power poles Coil voltage 240 VAC zero Auxiliary contact	$31.00

WEG CWC0 Series Miniature Contactors

More Kilowatts in a Smaller (45mm) Frame!

The CWC series mini contactors are a complete solution for controlling motors and switching other loads.

IEC current ratings from 7 Amp to 22 Amp
The CWC's compact dimensions allows it to take up less space inside electrical enclosures while still offering up to a powerful 11Kw @ 415V.
Dimensions of the 7A to 16A contactors are the same for both AC or DC coil voltages, making panel design and assembly easier.
DC models feature low consumption coils, allowing the CWC to be operated directly from a PLC without interface relays.
WEG RW overload relays are available in compact frame sizes from 0.28 A to 32A and are designed for use with, and as perfect complement to, the CWC miniature contactors.

WEG CWC Series Miniature Contactors


Miniature Contactor Features Rated up to 11Kw @ 415V Direct mounting to the WEG RW series overload relays Identical frame size for AC and DC coil contactors up to 16A Heavy-duty operation Tool-free DIN-rail mounting, snap-on accessories WEG 18-month warranty DC coil low power consumption: 1.7-2.7 W DC coil standard power consumption: 2.6-3.7 W Mirror contacts per IEC 60947-4-1 (built-in N.C. and N.C. auxiliary contacts) Mechanically linked contacts per IEC 60947-5-1 Agency Approvals/Certifications: cULus listed (File No. E202315/E189202), CE marked low voltage directive 2006/95/EC Standards: IEC/EN 60947-1, UL 508, CSA-C22.2 No. 14	Overload Relay Features Mounting an RW series overload relay directly to a WEG CWC miniature contactor creates an across-the-line starter capable of controlling motors from fractional to 11Kw @ 415V Compact frame sizes from 0.28 A to 32A Auxiliary contacts 1 N.O. + 1 N.C. Provides complete motor protection by offering: - Ambient temperature compensation (-4°F to +140°F) - Phase loss sensitivity protection - Current unbalance sensitivity Adjusting dial to set adjustable Trip current Selectable Hand / Auto / Reset / Test button Standards and Approvals: IEC 60947 and VDE 0660., cULus listed file no. E189202, CE marked low voltage directive 2006/95/EC, Marine

	WEG Miniature Contactors 3-Pole, 7 Amp Contactor ampere ratings: 7 Amps (AC3) Overload range: 0.28 to 17 Amps

	WEG Miniature Contactors 3-Pole, 9 Amp Contactor ampere ratings: 9 Amps (AC3) Overload range: 0.28 to 17 Amps

	WEG Miniature Contactors 3-Pole, 12 Amp Contactor ampere ratings: 12 Amps (AC3) Overload range: 0.28 to 17 Amps

	WEG Miniature Contactors 3-Pole, 16 Amp Contactor ampere ratings: 16 Amps (AC3) Overload range: 0.28 to 17 Amps

	WEG Miniature Contactors 3-Pole, 22 Amp Contactor ampere ratings: 22 Amps (AC3) Overload range: 7 to 32 Amps

CAD Library - 2D / 3D drawings

	WEG Miniature Contactors 4-Pole, 7 Amp Contactor ampere ratings: 7 Amps (AC3) Overload range: 0.28 to 17 Amps

	WEG Miniature Contactors 4-Pole, 9 Amp Contactor ampere ratings: 9 Amps (AC3) Overload range: 0.28 to 17 Amps

	WEG Miniature Contactors 4-Pole, 16 Amp Contactor ampere ratings: 16 Amps (AC3) Overload range: 7 to 32 Amps

[enlarge] WEG CWC Series Accessories/Assembly Diagram

Accessories
Front Mounted Auxiliary Contact Blocks	Surge Suppressors	Star-Delta Electronic Timing Relays	Wiring Kits (Jumper Assemblies)	Mechanical Interlock Block and Latch Block

WEG Contactors and overload Overview
