C-more Remote HMI

Display your way- the C-more Headless HMI lets you decide.

C-more Headless HMI (EA9-RHMI) gives you all the functionality of a C-more touch panel without the display size limitation. The EA9-RHMI has all the powerful functionality of the C-more Touch Panel HMIs. This HDMI-enabled device works with most HDMI display devices of any size to display real-time operational data or messages. The integrated USB ports allows support for industrial touch screen monitor displays that support USB interface or USB mouse operations. Now you can see your data from almost anywhere!

Documentation

(AutomationDirect documents. For current $AU prices please see our online store)

User Manual

Full Brochure Download

Software Brochure Download

Software The C-more EA9 software platform is the most user-friendly and time-saving software platform that allows for simple visualisation of your valuable system data. The alarming, data logging and email support allow you to collect and share important data to other users and devices. The two serial ports and a 10/100Base-T Ethernet port has support for all the major protocols and enables easy connections to multiple devices simultaneously.


You can also skip the local display entirely by using the remote access feature, Remote access is available from any windows PC (web browser) or an Apple iOS and Android smartphones and tablets when using the C-more Remote HMI mobile app.

Simultaneous Communications and Panel Pass-through
C-more HMI panels connect to different types protocols, including Modbus. In addition to all AutomationDirect PLCs, you can connect to many Allen-Bradley, Siemens, GE, Mitsubishi, Omron or Modicon PLCs. You can also connect multiple brands of PLC/PACs to C-more and communicate with them simultaneously. Use the Event Manager to periodically send tag values from one controller to another or when certain conditions are met.
C-more can even act as a ‘protocol bridge’, passing values back and forth between PLC/PACs that use different protocols.

Touch your panel from anywhere with Remote Access and Control!
No additional hardware required
The C-more Remote Access feature resides in all panels with Ethernet support, and requires no option modules. (C-more Micro does not support Remote Access).
Access real-time data or initiate an action on a control system from anywhere, any time.

C-more from your PC
With a Web browser on any PC, remote users can operate and monitor a local C-more HMI system from anywhere on the Internet or on a local network.
C-more from your Mobile Device
Mobile users can download the C-more Remote HMI app from the Apple iTunes store, Google Play, or Amazon App Store, to get remote access and control for Mobile devices FREE.

Authorized users have the ability to remotely:

• Monitor and control screen operations of the C-more panel as if touching the panel itself

• Test and troubleshoot the C-more project

• View, zoom, print and save screen captures of active screens

Convenient yet secure

• Multilevel Logon Security

• Three Remote Access user accounts can be configured and stored in the panel project. Each account allows up to five remote users to be connected simultaneously.

• Multilevel Access Control

• Each account can be configured in one of the following levels of access:

• View Only

• View and allow Screen Change only

• Full Control

Resizable Window
Unlike many other remote access software brands, the C-more remote viewer is completely sizable. When the user shrinks or expands the browser window, the projects objects will rescale accordingly.

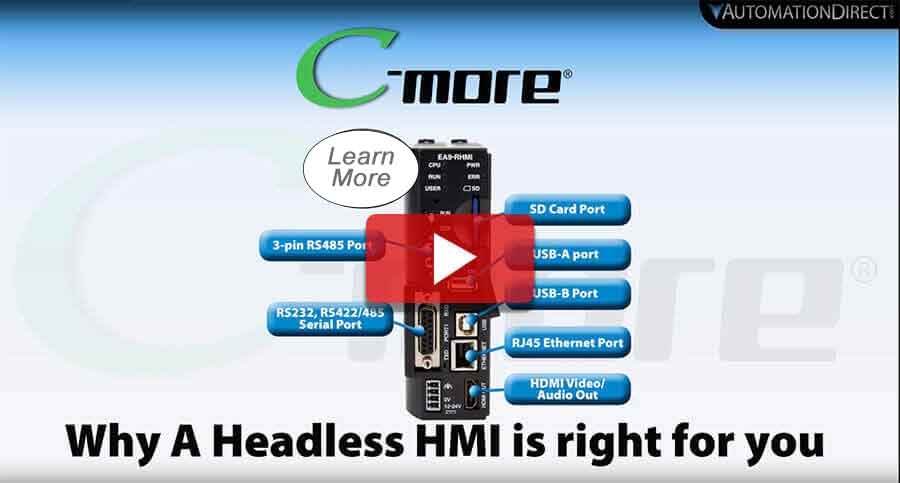

Why a Headless HMI is right for you
