Stellar Soft Starters

AC Motor Soft Starters

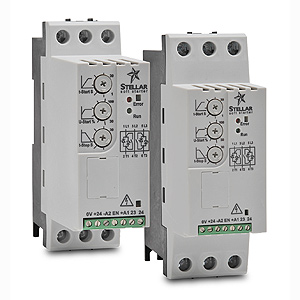

STELLAR™ SR22 Series Compact 3-Phase Soft Starters

  • 5A to 40A rated current versions @ 208–460V
  • 45 mm and 55 mm standard sizes



List  Grid

34 Item(s)

per page
Product Code Product Name QTY Price ($AUD) Action
SR22-05 Soft starter,5A,208-230/460VA Soft starter,5A,208-230/460VA - Stellar SR22 series compact reduced voltage soft starter, 5A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-45 … (read more)
$239.00
SR22-07 Soft starter,7A,208-230/460VA Soft starter,7A,208-230/460VA - Stellar SR22 series compact reduced voltage soft starter, 7A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-45 … (read more)
$257.00
SR22-09 Soft starter,9A,208-230/460VA Soft starter,9A,208-230/460VA - Stellar SR22 series compact reduced voltage soft starter, 9A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-45 … (read more)
$275.00
SR22-12 Soft starter,12A,208-230/460A Soft starter,12A,208-230/460A - Stellar SR22 series compact reduced voltage soft starter, 12A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-4 … (read more)
$296.00
SR22-16 Soft starter,16A,208-230/460A Soft starter,16A,208-230/460A - Stellar SR22 series compact reduced voltage soft starter, 16A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-4 … (read more)
$330.00
SR22-22 Soft starter,22A,208-230/460A Soft starter,22A,208-230/460A - Stellar SR22 series compact reduced voltage soft starter, 22A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-5 … (read more)
$425.00
SR22-30 Soft starter,30A,208-230/460A Soft starter,30A,208-230/460A - Stellar SR22 series compact reduced voltage soft starter, 30A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-5 … (read more)
$572.00
SR22-36 Soft starter,36A,208-230/460A Soft starter,36A,208-230/460A - Stellar SR22 series compact reduced voltage soft starter, 36A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-5 … (read more)
$711.00
SR22-40 Soft starter,40A,208-230/460A Soft starter,40A,208-230/460A - Stellar SR22 series compact reduced voltage soft starter, 40A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour. (Optional SR22-FAN-5 … (read more)
$859.00
SR22-FAN-45 Cooling Fan SR22 series,45mm Cooling Fan SR22 series,45mm - Cooling fan for SR22 series 45mm soft starters, increases duty cycle to 60 starts/hour for SR22-05, SR22-07, SR22-09, SR22-12, and SR22-16 models. Includes mounting hardw … (read more)
$79.00
SR22-FAN-55 Cooling Fan SR22 series,55mm Cooling Fan SR22 series,55mm - Cooling fan for SR22 series 55mm soft starters, increases duty cycle to 60 starts/hour for SR22-22, SR22-30, SR22-36, and SR22-40 models. Includes mounting hardware and c … (read more)
$79.00
SR33-22 Soft starter,22A,208-230/460A Soft starter,22A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 22A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$795.00
SR33-29 Soft starter,29A,208-230/460A Soft starter,29A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 29A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$840.00
SR33-41 Soft starter,41A,208-230/460A Soft starter,41A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 41A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$970.00
SR33-55 Soft starter,55A,208-230/460A Soft starter,55A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 55A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$995.00
SR33-66 Soft starter,66A,208-230/460A Soft starter,66A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 66A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$1,200.00
SR33-80 Soft starter,80A,208-230/460A Soft starter,80A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 80A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$1,300.00
SR33-97 Soft starter,97A,208-230/460A Soft starter,97A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 97A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable t … (read more)
$1,390.00
SR33-132 Soft starter132A,208-230/460A Soft starter132A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 132A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$1,750.00
SR33-160 Soft starter160A,208-230/460A Soft starter160A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 160A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$1,950.00
SR33-195 Soft starter195A,208-230/460A Soft starter195A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 195A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$2,200.00
SR33-241 Soft starter241A,208-230/460A Soft starter241A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 241A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$3,390.00
SR33-280 Soft starter280A,208-230/460A Soft starter280A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 280A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$3,500.00
SR33-350 Soft starter350A,208-230/460A Soft starter350A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 350A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$5,290.00
SR33-430 Soft starter430A,208-230/460A Soft starter430A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 430A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$5,790.00
SR33-482 Soft starter482A,208-230/460A Soft starter482A,208-230/460A - Stellar SR33 series basic reduced voltage soft starter, 482A, 208-230/460 VAC, for 3-phase motors (two phases controlled), rated for 10 starts/hour; footprint comparable … (read more)
$6,100.00
SR33-HS1 Optional heat shrink Inst kit Optional heat shrink Inst kit - Optional heat shrink insulation kit for SR33 soft starters. Required for UL installation for the following starters: SR33-132, SR33-160, SR33-195, SR33-241, and SR33-280. … (read more)
$15.00
SR44-9 Soft starter, 9A, 30-460AC Soft starter, 9A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 9A, 230-460 VAC 3-phase, rated for 10 starts/hour. Single-phase 230VAC or 115VAC control power required, I … (read more)
$1,350.00
SR44-16 Soft starter, 16A, 30-460AC Soft starter, 16A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 16A, 230-460 VAC 3-phase, rated for 10 starts/hour. single-phase 230VAC or 115VAC control power required, … (read more)
$1,370.00
SR44-23 Soft starter, 23A, 30-460AC Soft starter, 23A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 23A, 230-460 VAC 3-phase, rated for 10 starts/hour. single-phase 230VAC or 115VAC control power required, … (read more)
$1,390.00
SR44-30 Soft starter, 30A, 30-460AC Soft starter, 30A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 30A, 230-460 VAC 3-phase, rated for 10 starts/hour. single-phase 230VAC or 115VAC control power required, … (read more)
$1,516.00
SR44-59 Soft starter, 59A, 30-460AC Soft starter, 59A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 59A, 230-460 VAC 3-phase, rated for 10 starts/hour. single-phase 230VAC or 115VAC control power required, … (read more)
$1,850.00
SR44-85 Soft starter, 85A, 30-460AC Soft starter, 85A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 85A, 230-460 VAC 3-phase, rated for 10 starts/hour. single-phase 230VAC or 115VAC control power required, … (read more)
$2,250.00
SR44-242 Soft starter, 242A, 30-460AC Soft starter, 242A, 30-460AC - Stellar SR44 series full featured reduced voltage soft starter, 242A, 230-460 VAC 3-phase, rated for 3 starts/hour. single-phase 230VAC or 115VAC control power required, … (read more)
$4,000.00

List  Grid

34 Item(s)

per page

SR22 semi-conductor solid state soft starters provide many advantages when used instead of electro-mechanical contactors to control 3-phase AC induction motors.

  • The SR22 motor soft starters use thyristors for controlled reduced voltage motor starting and stopping
  • These low voltage soft starters then switch to internal contacts for efficient running at the rated speed

Applications
  • General purpose soft start applications where traditional across-the-line starting or wye-delta starting would typically be appropriate.
  • Application types include: Agitator, Air Compressor, Ball Mill, Centrifuge, Chiller, Conveyor, Crusher, Escalator, Fan (Low and High Inertia), Feeder, Grinder, Hammer Mill, Lathe Machine , Mills (Flour, etc.), Mixer (Unloaded or Loaded), Pelletizer, Plastic and Textile Machines, Press (Flywheel), Pump (Centrifugal), Pump (Positive Displacement), Rolling Mill, Saw (Band), Saw (Circular), Screen (Vibrating), Transformer, Voltage Regulator, Tumbler, Wood Chipper.





videoSR22 Series Soft Starters

Features
  • 5-40A @ 208-460V
  • 24 VDC control voltage
  • Easily and separately adjustable motor start and stop times
  • Two-phase control
  • Internal bypass contacts for run
  • Error and Run LEDs
  • DIN rail mounting
  • Cooling fans (available option)
  • Two standard-size widths: 45 mm & 55 mm
  • Six error/trip indications: AC Supply, Control Supply, Overheated, Bypass Failure, Shear Pin, Overcurrent
Standards and Approvals
  • UL listed* (E333109) *(optional fans are UL recognized: E132139, E77551, E89936)
  • RoHS
  • CE
Optional Soft Starter Accessories
  • Cooling fan (increases # of motor starts/hour)
Advantages
  • Mechanical Advantages
    • Smooth acceleration; reduced shock and starting stress
    • Extend lifespan of mechanical drive train components
    • Fluid couplings and some clutches can be eliminated
  • Electrical Advantages
    • Reduced motor starting current
    • More motors or larger motors can be started from lower-capacity power sources
    • Allows motors to be started more frequently
    • Internal mechanical contacts open and close under reduced current, increasing lifespan and reliability
  • Economic Advantages
    • Lower overall costs for new installations
    • Reduced maintenance and replacement of mechanical drive train components
    • Reduced starting current reduces electrical power costs by reducing peak demand


Soft Starter Selection / Sizing
  • Our Sizing Chart contains 3 easy steps to properly size your soft starter based on horsepower, voltage, and starting class

Compact Soft Starters / Cooling Fans





Compact AC Motor Soft Starters Overview a
