Danfoss Micro VS Drives

DA

danl

The VLT� Micro Drive is a general purpose drive that can control AC motors up to 22 kW. It’s a small drive with maximum strength and reliability. RoHS compliant The VLT� Micro Drive is manufactured with respect for the environment, and it complies with the RoHS Directive. The perfect match for: • Industrial appliances • HVAC applications • OEM







List  Grid

41 Item(s)

per page
Product Code Product Name QTY Price ($AUD) Action
132F0001 0.18kw 240v 1ph VLT Micro Drive 0.18kw 240v 1ph VLT Micro Drive -

0.18kw 240v 1ph VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital … (read more)

$165.00
132F0002 0.37kw 240v 1ph VLT MicroDrive 0.37kw 240v 1ph VLT MicroDrive -

0.37kw 240v 1ph VLT MicroDrive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital … (read more)

$180.00
132F0003 0.75kw 240v 1ph VLT MicroDrive 0.75kw 240v 1ph VLT MicroDrive -

0.75kw 240v 1ph VLT MicroDrive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital … (read more)

$196.00
132F0005 1.5kw 240v 1ph VLT Micro Drive 1.5kw 240v 1ph VLT Micro Drive -

1.5kw 240v 1ph VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital … (read more)

$290.00
132F0007 2.2kw 240v 1ph VLT Micro Drive 2.2kw 240v 1ph VLT Micro Drive -

2.2kw 240v 1ph VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital … (read more)

$370.00
132F0017 .37 Kw 415v VLT Micro Drive .37 Kw 415v VLT Micro Drive -

.37 Kw 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$255.00
132F0018 0.75Kw 415v VLT Micro Drive 0.75Kw 415v VLT Micro Drive -

0.75Kw 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$295.00
132F0020 1.5 Kw 415v VLT Micro Drive 1.5 Kw 415v VLT Micro Drive -

1.5 Kw 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$395.00
132F0022 2.2 Kw 415v VLT Micro Drive 2.2 Kw 415v VLT Micro Drive -

2.2 Kw 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$495.00
132F0024 3kW 415v VLT Micro Drive 3kW 415v VLT Micro Drive -

3kW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Contro … (read more)

$595.00
132F0026 4Kw 415v VLT Micro Drive 4Kw 415v VLT Micro Drive -

4Kw 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Contro … (read more)

$645.00
132F0028 5.5KW 415v VLT Micro Drive 5.5KW 415v VLT Micro Drive -

5.5KW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Cont … (read more)

$750.00
132F0030 7.5kW 415v VLT Micro Drive 7.5kW 415v VLT Micro Drive -

7.5kW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Cont … (read more)

$850.00
132F0058 11.0kW 415v VLT Micro Drive 11.0kW 415v VLT Micro Drive -

11.0kW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$1,190.00
132F0059 15.0kW 415v VLT Micro Drive 15.0kW 415v VLT Micro Drive -

15.0kW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$1,350.00
132F0060 18.5KW 415v VLT Micro Drive 18.5KW 415v VLT Micro Drive -

18.5KW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$1,695.00

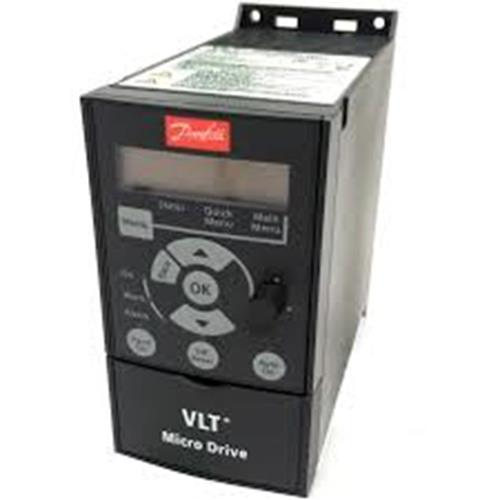

132F0061 22.0kW 415v VLT Micro Drive 22.0kW 415v VLT Micro Drive -

22.0kW 415v VLT Micro Drive

N.B Local Control Panel (LCP) not included. Please order either a 132B0101 LCP12 Pot Controller or a132B0100 LCP 11 Digital Con … (read more)

$1,970.00
130B2522 Line filter suits 132F0001&2 Line filter suits 132F0001&2 - to suit 132F0001, 132F0002
$170.00
130B2533 Line filter suits 132F0003 Line filter suits 132F0003 - to suit 132F0003
$240.00
130B2525 Line filter suits 132F0005 Line filter suits 132F0005 - to suit 132F0005
$295.00
130B2530 Line filter suits 132F0007 Line filter suits 132F0007 - to suit 132F0007
$370.00
130B2523 Line filter for132F00017 & 18 Line filter for132F00017 & 18 - to suit 132F0017, 132F0018
$160.00
130B2524 Line filter suits 130B0020 Line filter suits 130B0020 - to suit 132F0020
$290.00
130B2526 Line filter suits 132F0012 Line filter suits 132F0012 - to suit 132F0012
$320.00
130B2529 Line filter suits 132F0024 Line filter suits 132F0024 - to suit 132F0024
$340.00
130B2531 Line filter suits 132F0026 Line filter suits 132F0026 - to suit 132F0026
$320.00
130B2528 Line filter suits 132F0028 Line filter suits 132F0028 - to suit 132F0028
$390.00
130B2527 Line filter suits 132F0030 Line filter suits 132F0030 - to suit 132F0030
$390.00

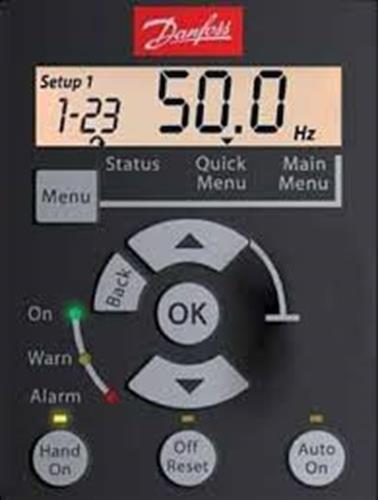

132B0100 Keypad without Pot LCP11 Keypad without Pot LCP11 - Danfoss FC51 VLT - LCP 11 - Digital Control Panel / Keypad, Without Potentiometer.
$35.00
132B0101 Keypad with Pot LCP12 Keypad with Pot LCP12 - Danfoss FC51 VLT - LCP 12 - Danfoss VLT / VFD - Digital Control Panel / Pad With Potentiometer.
$35.00
132B0102 LCPxx Remote Mount Kit LCPxx Remote Mount Kit - Danfoss FC51 VLT - Remote Mounting Kit for LCPxx - Includes 3m cable. IP55 w/- LCP 11, IP21 w/- LCP 12.
$15.00
132B0103 Nema 1 Kite for M1 Frame Nema 1 Kite for M1 Frame - Danfoss FC51 VLT - IP20 Type 1 (Nema) Mounting Kit for M1 Frame - 1 x 240VAC = 0.18 - 0.75kW, 3 x 240VAC = 0.25 - 0.75kW, 3 x 415VAC = 0.37 - 0.75kW, H=194.3mm, W=70mm, D … (read more)
$12.00
132B0104 Nema 1 Kit for M2 Frame Nema 1 Kit for M2 Frame - Danfoss FC51 VLT - IP20 Type 1 (Nema) Mounting Kit for M2 Frame - 1 x 240VAC = 1.5kW, 3 x 240VAC = 1.25kW, 3 x 415VAC = 1.5 - 2.2kW, H=220.6mm, W=75mm, D=175.4mm.
$12.00
132B0105 Nema 1 Kit for M3 Frame Nema 1 Kit for M3 Frame - Danfoss FC51 VLT - IP20 Type 1 (Nema) Mounting Kit for M3 Frame - 1 x 240VAC = 2.2kW, 3 x 240VAC = 2.2 - 3.7kW, 3 x 415VAC = 3.0 - 7.5kW, H=282.5mm, W=90mm, D=201.3mm.
$15.00
132B0106 De-Coupling Plate M1 & M2 De-Coupling Plate M1 & M2 - Danfoss FC51 VLT - IP20 De-Coupling Plate Kit for M1 and M2 Frames - M1 - H=204.2mm, W=70mm, D=155.9mm, M2 - H=230mm, W=75mm, D=175.4mm.
$10.00
132B0107 De-Coupling Plate M3 De-Coupling Plate M3 - Danfoss FC51 VLT - IP20 De-Coupling Plate Kit for M3 Frame - H=218.5mm, W=90mm, D=201.3mm.
$10.00
132B0108 IP21 Kit for M1 Frame IP21 Kit for M1 Frame - Danfoss FC51 VLT - IP21 Type 1 Enclosure Kit for M1 Frame - 1 x 240VAC = 0.18 - 0.75kW, 3 x 240VAC = 0.25 - 0.75kW, 3 x 415VAC = 0.37 - 0.75kW, H=219.3mm, W=73mm, D=155.9 … (read more)
$15.00
132B0109 IP21 Kit for M2 Frame IP21 Kit for M2 Frame - Danfoss FC51 VLT - IP21 Type 1 Enclosure Kit for M2 Frame - 1 x 240VAC = 1.5kW, 3 x 240VAC = 1.25kW, 3 x 415VAC = 1.5 - 2.2kW, H=245.6mm, W=78mm, D=175.4mm.
$20.00
132B0110 IP21 Kit for M3 Frame IP21 Kit for M3 Frame - Danfoss FC51 VLT - IP21 Type 1 Enclosure Kit for M3 Frame - 1 x 240VAC = 2.2kW, 3 x 240VAC = 2.2 - 3.7kW, 3 x 415VAC = 3.0 - 7.5kW, H=297.5mm, W=95mm, D=201.4mm.
$25.00
132B0111 Din Rail Kit for M1 Frame Din Rail Kit for M1 Frame - Danfoss FC51 VLT - Din Rail Mounting Kit for M1 and M2 Frames.
$6.00
132B0122 De-Coupling Plate De-Coupling Plate - Danfoss FC51 VLT - IP20 De-Coupling Plate Kit for M4 and M5 Frames - M4 - H=347.5mm, W=125mm, D=248.5mm, M5 - H=387.5mm, W=165mm, D=248.2mm.
$20.00

List  Grid

41 Item(s)

per page


acrobat Danfoss Easy to use guide

Features and benefits

Product Range
1 x 200–240 V AC 0.18–2.2 kW
3 x 200–240 V AC 0.25–3.7 kW
3 x 380–480 V AC 0.37–22kW

VLT® Micro Drive is a genuine VLT® frequency converter with unsurpassed reliability, user-friendliness, condensed functionality, and extremely easy to commission. Terminal numbers are named in the same manner as in the rest of the VLT® family.
Despite the compact size and the easy commissioning, VLT® Micro Drive can be set up to perform perfectly even in complex application set-ups.
Approximately 100 parameters can be set to optimize energy efficiency and operation.

Coated PCB standard
For harsh environments.

Real space saving side-by-side
A compact book style design allows real side by side mounting without derating.

Minimum penetration of dust
VLT® Micro Drive is designed to keep the forced ventilation away from the electronics. Printed circuit boards are well protected inside the drive.

Built-in RFI
Radio disturbance from motor cables is limited with the built-in RFI filter allowing for 15 m motor cables (screened). Meets EU norms.

Built-in brake functions
With built in DC and AC brake functions, VLT® Micro Drive can transform kinetic energy in the application into braking power to slow down the motor. A brake chopper is built-in the drives from 1.5 kW upwards.

Display options
Numerical Local Control Panel;
-Without potentiometer(LCP 11)
-With potentiometer(LCP 12)
LCP Remote mounting kit with 3m cable.

Accessories
NEMA Type Kit 1
Decoupling plate kit.
DIN rail mounting kit.
(Frame m1 and m2)IP21 kit (Frame m1, m2 and m3)d

Specifications

Mains supply (L1, L2, L3):
Supply voltage
1 x 200–240 V ±10%,
3 x 200–240 V±10%
3 x 380–480 V ±10%

Output data (U, V, W):
Output voltage.0–100% of supply voltage

Output frequency
0–200 Hz (VVC+ mode), 0–400 Hz(U/f mode)

Switching on output
Unlimited

Ramp times
0.05–3600 sec

Digital inputs:
Programmable inputs
5
Logic
PNP or NPN
Voltage level
0–24 V

Pulse inputs:
Programmable inputs1*
Voltage level
0–24 V DC (PNP positive logic)
Pulse input frequency
20–5000 Hz
* One of the digital inputs can be used for pulse inputs.

Analog input:
Analog inputs 2 Modes
1 current/1 voltage or current
Voltage level
0 – 10 V (scaleable)
Current level
0/4–20 mA (scaleable)

Analog output:
Programmable analog outputs 1
Current range at analog output
0/4–20 mA

Relay outputs:
Programmable relay outputs 1
(240 VAC, 2 A)
Approvals:
CE, C-tick, UL

Fieldbus communication:
FC Protocol
Modbus RTU

Motion Control Tools



f

The VLT Motion Control Tool MCT 10 for handling drive related data makes it easy to overview even large drive systems.
- Explorer like user interface
- Project orientated, easy to use on network installations
- Full screen view
- 6 languages: English, German, French, Spanish, Italian and Danish
- On and off line programming
- Integrated SyncPos programming
- Profibus DP-V1 communication
- Hub for future Danfoss PC programs
- Will support existing drives series as well as new products



VLT Motion Control Tool MCT 10 Enables configuration of a VLT AC drive or softstarter from a PC and offers drive updates.

To install MCT 10 Basic: Open the downloaded file Enter CD keycode 12314500 Do not enter a licence key Tick the box “Install basic version with limited functionality”

Download VLT Motion Control Tool MCT10

To install MCT 10 Advanced: Contact your local Danfoss Drives representative VLT Motion Control Tool MCT 10 Enables configuration of a VLT AC drive or softstarter from a PC and offers drive updates.





Read The VLT Micro Drive Brochure
