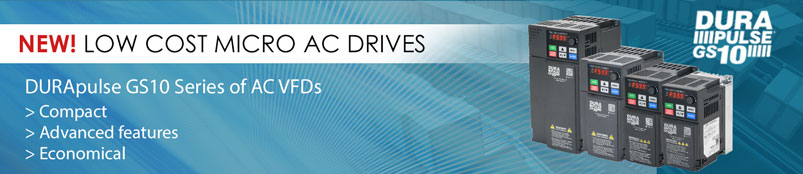

AutomationDirect has added the DURApulse GS10 series as their newest and most affordable line of micro AC drives. GS10 drives are available in a variety of voltage and horsepower ratings, including single-phase 120VAC models in sizes from ¼ to 1 hp, single-phase 230VAC models from ¼ to 3hp, three-phase 230VAC models from ¼ to 7.5 hp, and 460VAC three-phase units from ½ to 10 hp.

GS10 micro drives offer advanced features such as sensorless vector control, PID control, multiple motor support for induction motors, as well as the ability to control permanent magnet motors. Modbus RTU communication and generous built-in I/O, including analog, digital (with one 10kHz pulse train input), and relay, are standard.

NEMA 1 conduit boxes, DIN rail mounting kits, braking resistors, and more are offered as optional accessories.



TOP FEATURES

        •  Built-in keypad with 4-digit, 7 segment LED display
        •  Speed control potentiometer and optional remote keypad
        •  QR Code for remote access to product details (online)
        •  Removable fan, fast & easy to replace
        •  Removable RFI jumper (depends on application needs)
            •  Spring clamp terminal blocks
            •  Zero-stack installation saves time, money and panel space by allowing the GS10 drives to be mounted right up next to each other.
            •  V/Hz Control and Sensorless Vector Control
            •  Maximum Frequency Output 599Hz
            •  Multiple motor support, supports up to 2 induction motor switching control from a single VFD
            •  Built-in braking chopper
            •  DEB, deceleration energy backup, controls motor deceleration during power loss
            •  100kA short circuit current rating
            •  Circuit boards have conformal coating for improved environmental tolerance
            •  Built-in RS485 communications (Modbus RTU)
            •  Analog input, selectable voltage or current
            •  Analog output, voltage
            •  Digital IO: 5 inputs, 2 outputs
            •  Mounting, NEMA1 conduit box; DIN rail adapter; EMC shield plate; Top-wire mounting plate (all optional)
            •  Compact size
            •  Fire Mode - Run fire mode during emergencies to have uninterrupted smoke removal and system pressure
            •  Multi-pump Control and Auto Operation functions
            •  UL, CE listed



DURApulse GS10 VFD image with call-outs of top features
