- 8 DC Inputs/6 DC Out 240V
PRODUCT DESCRIPTION

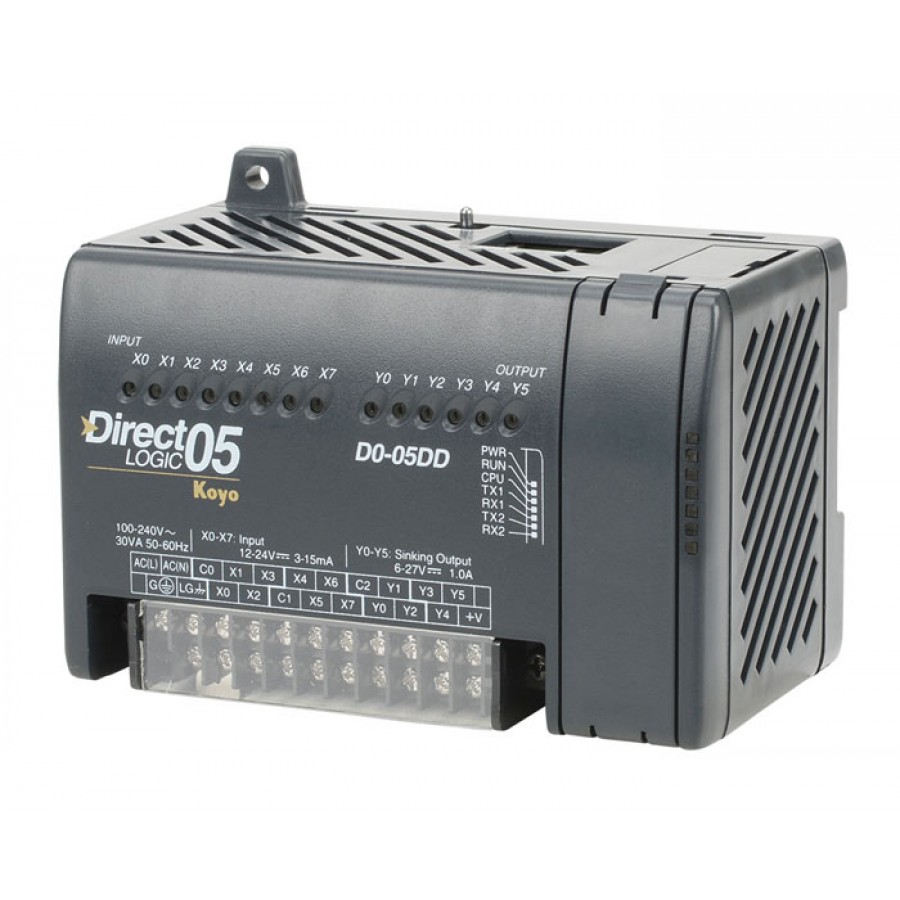

DL05 CPU, 8 DC in / 6 DC out, requires external 110-220 VAC power. 6k words total (2048 words ladder - flash, 4096 words V-memory), RLL/RLLPLUS programming, built-in RS-232C programming port and additional RS-232C communications port. Inputs: 8 DC inputs, 12-24 VDC current sinking/sourcing, 2 isolated commons. First 3 inputs are configurable in one of several high-speed I/O features such as 5kHz counter input, pulse catch input, or interrupt input (not available when using pulse output). Outputs: 6 DC outputs, 6-27 VDC current sinking, 1.0A/point max., 1 common. 2 outputs are configurable for independent CW/CCW pulse train output or step and direction pulse output up to 7kHz (0.5A/point) (not available when using high-speed inputs). One option slot available for I/O or communication module.Other customer also purchased
