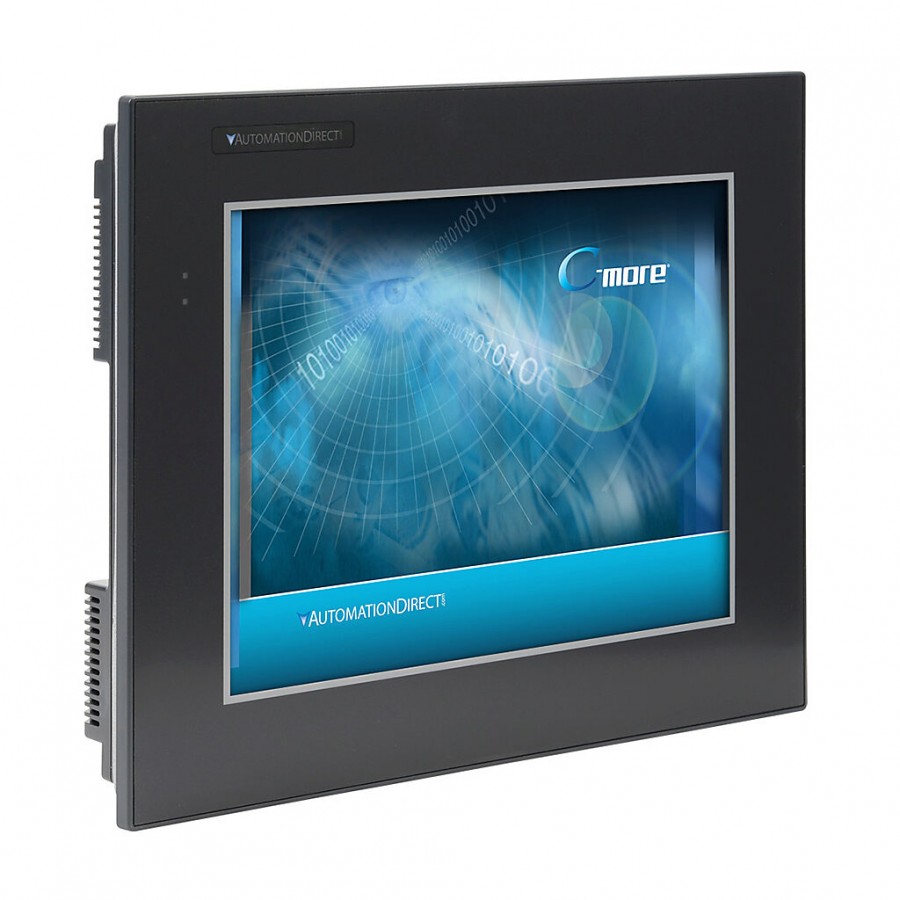

- C-more EA9 Series 12in Touch Screen HMI
PRODUCT DESCRIPTION
C-more EA9 series touch screen HMI, 12in colour TFT LCD, 800 x 600 pixel, SVGA, supports (3) serial, (1) Ethernet and (2) USB ports, (2) memory card slots, (1) HDMI video out and (1) audio line out. Cutout = 319.3mm x 259.6mm
Technical Attributes | |
---|---|
Touch Screen | Yes |
Display Size | 12 inch |
Viewable Size | 12.1inch |
Display Type | Colour TFT LCD |
Widescreen | No |
Display Maximum Colours | 64K colours |
Display Resolution (W x H) | 800 x 600 pixel |
Display Video Standard | SVGA |
Display Orientation | Landscape |
Backlight Type | LED |
CPU Clock Speed | 800 MHz |
Power Requirement | 12-24 VDC |
Housing Rating | NEMA 4/4X |
Environmental Requirements | Indoor use only |
IP Rating | IP65 |
Serial Ports | (1) RS232, (1) RS-232/422/485 and (1) RS-485 |
Ethernet Ports | (1) 10/100 Mbps |
USB Ports | (1) 2.0 Type A and (1) 2.0 Type B |
Audio Out | 3.5mm mini jack - requires amplifier and speaker(s) |
Card Slots | (2) SD memory cards |
HDMI Ports | (1) HDMI video out |
Software Required | EA9-PGMSW programming software v5.0 or later |
Includes | Mounting hardware, gasket and cutout template |
Agency Compliance & Certifications
(Search for UL file number above.)
