Process contr 1/16DIN 11-15VDC

PRODUCT DESCRIPTION

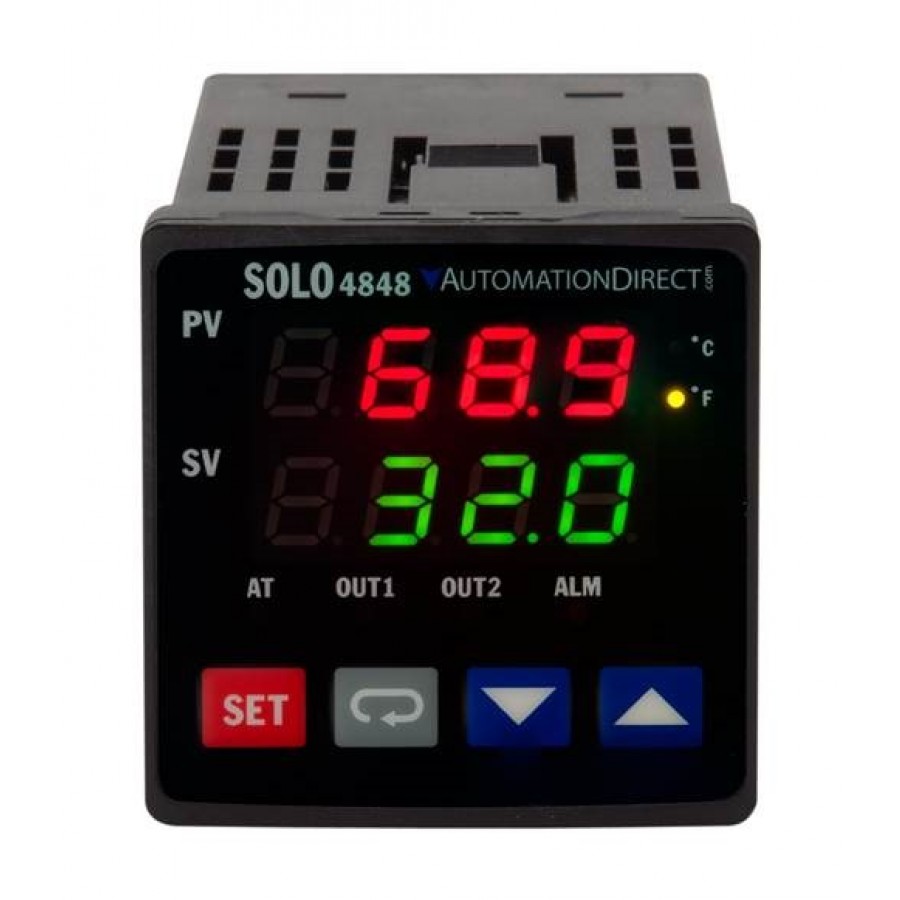

SOLO single loop dual-output digital temperature controller, 1/16 DIN, with one 11-15 VDC pulse output (40mA max), and one 5A SPST mechanical relay output (or can be used as an alarm) and two 3A SPST alarm relays (with a shared common). Universal inputs include T/C, RTD and analog (0-5V, 0-10V, 0-20mA, 4-20mA, 0-50mV), 2-line LED display, accepts 100-240 VAC operational power. PID, ON-OFF and manual control plus 64-segment Ramp/Soak profile, standard RS-485 communications (Modbus ASCII and RTU). Mounting clips are included.
